Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: quote
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:Quotation
Containing Schema: fpml-valuation-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
One or more numerical measures relating to the asset, possibly together with sensitivities of that measure to pricing inputs.

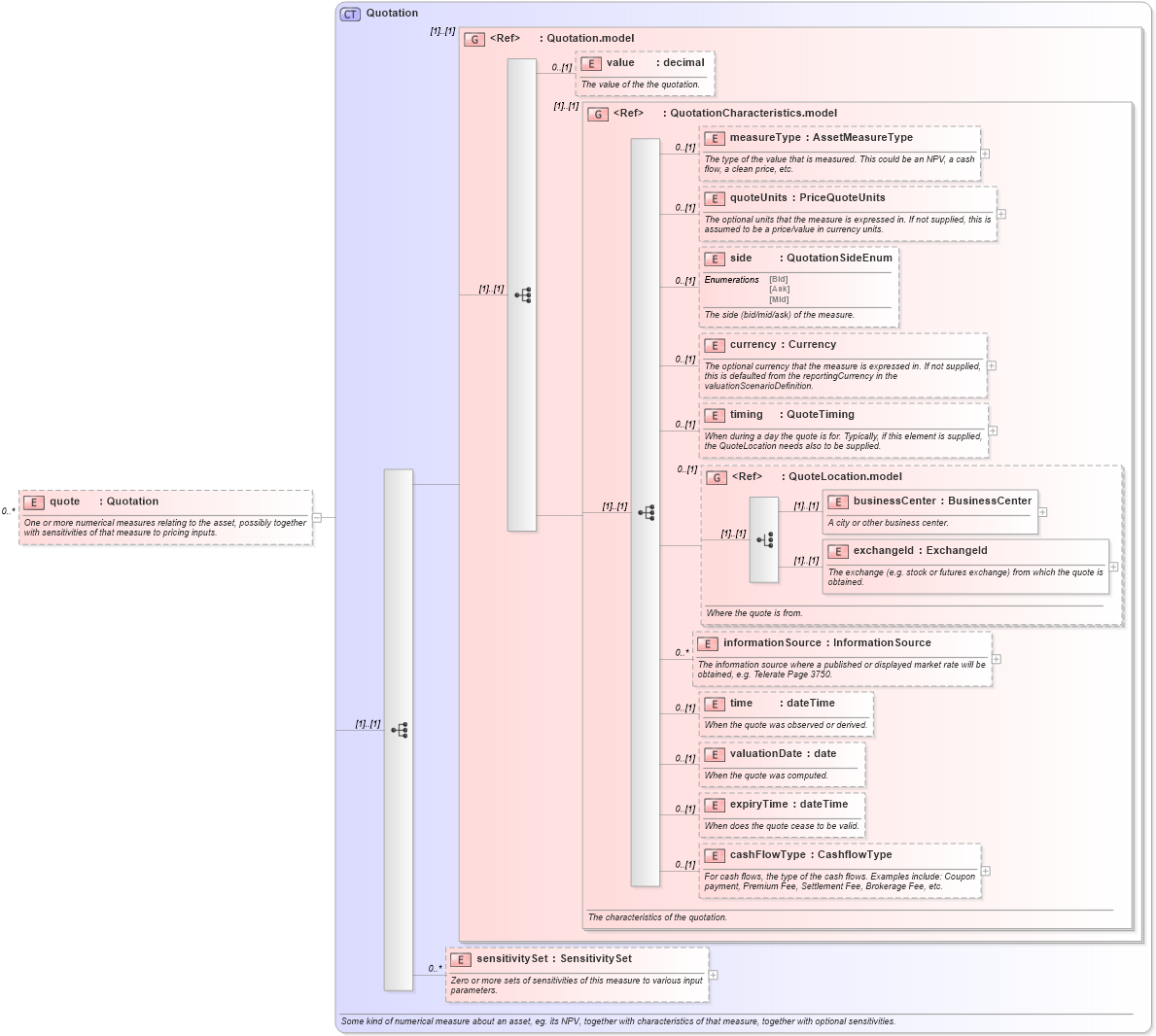

Collapse XSD Schema Diagram:
Drilldown into sensitivitySet in schema fpml-valuation-4-4_xsd Drilldown into cashFlowType in schema fpml-asset-4-4_xsd Drilldown into expiryTime in schema fpml-asset-4-4_xsd Drilldown into valuationDate in schema fpml-asset-4-4_xsd Drilldown into time in schema fpml-asset-4-4_xsd Drilldown into informationSource in schema fpml-asset-4-4_xsd Drilldown into exchangeId in schema fpml-asset-4-4_xsd Drilldown into businessCenter in schema fpml-asset-4-4_xsd Drilldown into QuoteLocation.model in schema fpml-asset-4-4_xsd Drilldown into timing in schema fpml-asset-4-4_xsd Drilldown into currency in schema fpml-asset-4-4_xsd Drilldown into side in schema fpml-asset-4-4_xsd Drilldown into quoteUnits in schema fpml-asset-4-4_xsd Drilldown into measureType in schema fpml-asset-4-4_xsd Drilldown into QuotationCharacteristics.model in schema fpml-asset-4-4_xsd Drilldown into value in schema fpml-asset-4-4_xsd Drilldown into Quotation.model in schema fpml-asset-4-4_xsd Drilldown into Quotation in schema fpml-valuation-4-4_xsdXSD Diagram of quote in schema fpml-valuation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="quote" type="Quotation" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">One or more numerical measures relating to the asset, possibly together with sensitivities of that measure to pricing inputs.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value fpml:value 0 (1)
measureType fpml:measureType 0 (1)
quoteUnits fpml:quoteUnits 0 (1)
side fpml:side 0 (1)
currency fpml:currency 0 (1)
timing fpml:timing 0 (1)
businessCenter fpml:businessCenter (1) (1)
exchangeId fpml:exchangeId (1) (1)
informationSource fpml:informationSource 0 unbounded
time fpml:time 0 (1)
valuationDate fpml:valuationDate 0 (1)
expiryTime fpml:expiryTime 0 (1)
cashFlowType fpml:cashFlowType 0 (1)
sensitivitySet fpml:sensitivitySet 0 unbounded
<xs:group> fpml:Quotation.model (1) (1)
<xs:group> fpml:QuotationCharacteristics.model (1) (1)
<xs:group> fpml:QuoteLocation.model 0 (1)
Collapse Derivation Tree:
