Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: relativeDates
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:RelativeDates
Containing Schema: fpml-shared-4-4.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A series of dates specified as some offset to another series of dates (the anchor dates).

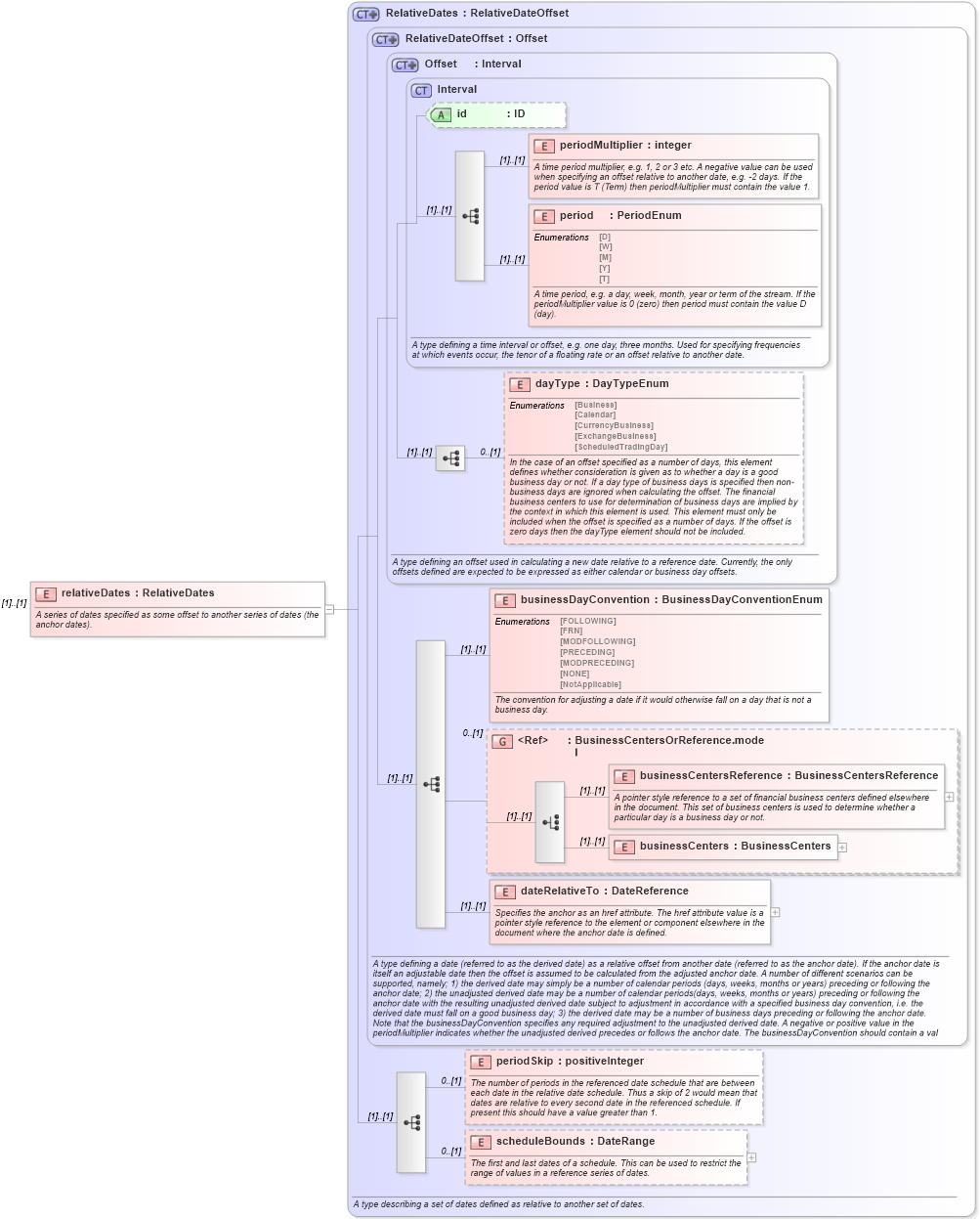

Collapse XSD Schema Diagram:
Drilldown into scheduleBounds in schema fpml-shared-4-4_xsd Drilldown into periodSkip in schema fpml-shared-4-4_xsd Drilldown into dateRelativeTo in schema fpml-shared-4-4_xsd Drilldown into businessCenters in schema fpml-shared-4-4_xsd Drilldown into businessCentersReference in schema fpml-shared-4-4_xsd Drilldown into BusinessCentersOrReference.model in schema fpml-shared-4-4_xsd Drilldown into businessDayConvention in schema fpml-shared-4-4_xsd Drilldown into dayType in schema fpml-shared-4-4_xsd Drilldown into period in schema fpml-shared-4-4_xsd Drilldown into periodMultiplier in schema fpml-shared-4-4_xsd Drilldown into id in schema fpml-shared-4-4_xsd Drilldown into Interval in schema fpml-shared-4-4_xsd Drilldown into Offset in schema fpml-shared-4-4_xsd Drilldown into RelativeDateOffset in schema fpml-shared-4-4_xsd Drilldown into RelativeDates in schema fpml-shared-4-4_xsdXSD Diagram of relativeDates in schema fpml-shared-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="relativeDates" type="RelativeDates">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">A series of dates specified as some offset to another series of dates (the anchor dates).</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
periodMultiplier fpml:periodMultiplier (1) (1)
period fpml:period (1) (1)
dayType fpml:dayType 0 (1)
businessDayConvention fpml:businessDayConvention (1) (1)
businessCentersReference fpml:businessCentersReference (1) (1)
businessCenters fpml:businessCenters (1) (1)
dateRelativeTo fpml:dateRelativeTo (1) (1)
periodSkip fpml:periodSkip 0 (1)
scheduleBounds fpml:scheduleBounds 0 (1)
<xs:group> fpml:BusinessCentersOrReference.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
