Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: underlyer
Namespace: http://www.fpml.org/2007/FpML-4-4
Type: fpml:TradeUnderlyer
Containing Schema: fpml-reconciliation-4-4.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.

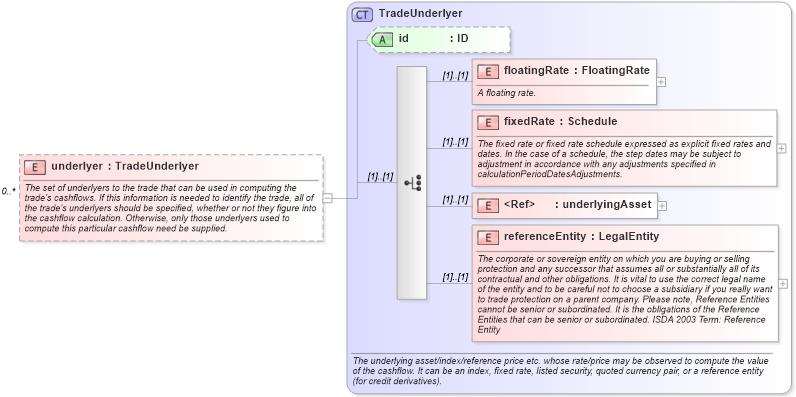

Collapse XSD Schema Diagram:
Drilldown into referenceEntity in schema fpml-reconciliation-4-4_xsd Drilldown into underlyingAsset in schema fpml-asset-4-4_xsd Drilldown into fixedRate in schema fpml-reconciliation-4-4_xsd Drilldown into floatingRate in schema fpml-reconciliation-4-4_xsd Drilldown into id in schema fpml-reconciliation-4-4_xsd Drilldown into TradeUnderlyer in schema fpml-reconciliation-4-4_xsdXSD Diagram of underlyer in schema fpml-reconciliation-4-4_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="underlyer" type="TradeUnderlyer" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">The set of underlyers to the trade that can be used in computing the trade's cashflows. If this information is needed to identify the trade, all of the trade's underlyers should be specified, whether or not they figure into the cashflow calculation. Otherwise, only those underlyers used to compute this particular cashflow need be supplied.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
floatingRate fpml:floatingRate (1) (1)
fixedRate fpml:fixedRate (1) (1)
underlyingAsset fpml:underlyingAsset (1) (1)
referenceEntity fpml:referenceEntity (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
