Documentation for Financial products Markup Language (FpML®)
Definition Type: Element
Name: commoditySwap
Namespace: http://www.fpml.org/2009/FpML-4-6
Type: fpml:CommoditySwap
Containing Schema: fpml-com-4-6.xsd
Abstract
Documentation:
Defines a commodity swap product.

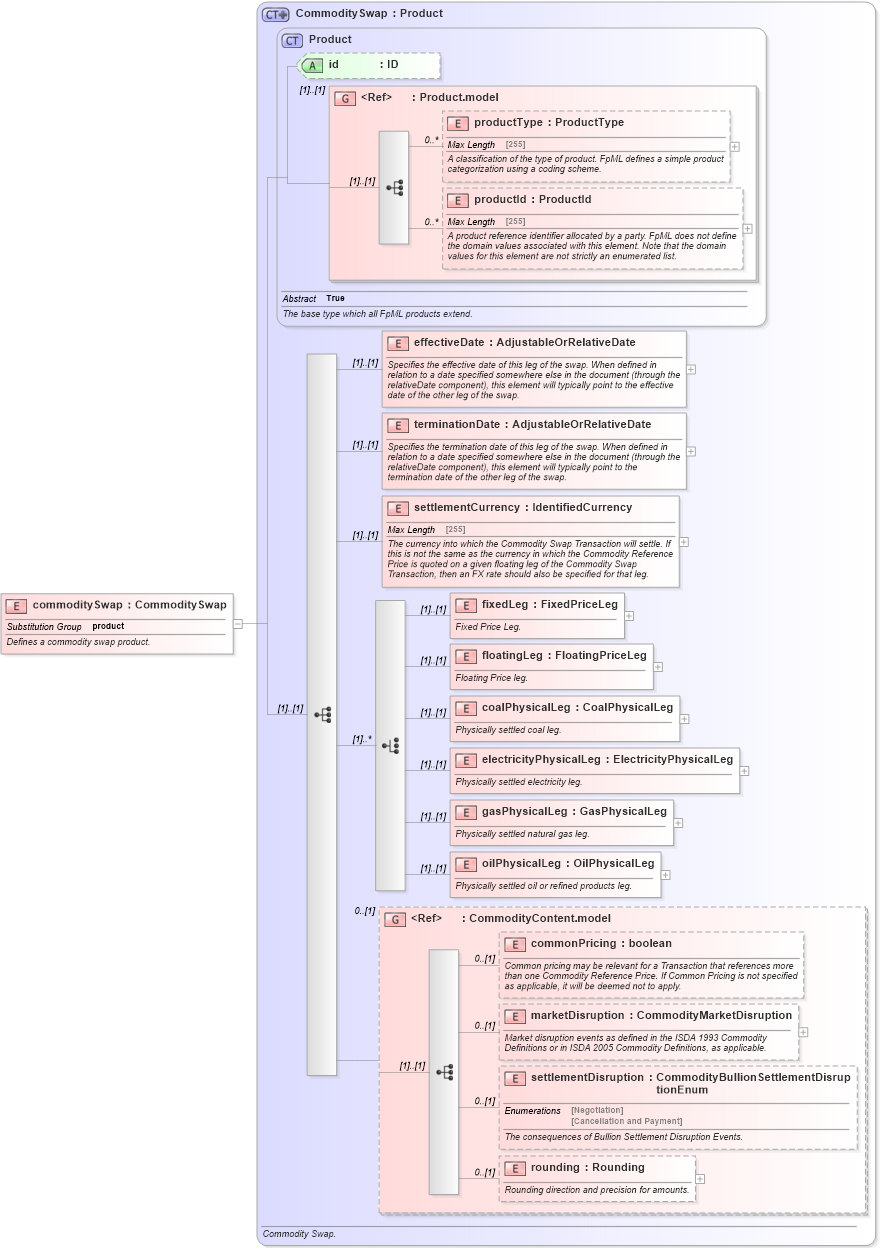

Collapse XSD Schema Diagram:
Drilldown into rounding in schema fpml-com-4-6_xsd Drilldown into settlementDisruption in schema fpml-com-4-6_xsd Drilldown into marketDisruption in schema fpml-com-4-6_xsd Drilldown into commonPricing in schema fpml-com-4-6_xsd Drilldown into CommodityContent.model in schema fpml-com-4-6_xsd Drilldown into oilPhysicalLeg in schema fpml-com-4-6_xsd Drilldown into gasPhysicalLeg in schema fpml-com-4-6_xsd Drilldown into electricityPhysicalLeg in schema fpml-com-4-6_xsd Drilldown into coalPhysicalLeg in schema fpml-com-4-6_xsd Drilldown into floatingLeg in schema fpml-com-4-6_xsd Drilldown into fixedLeg in schema fpml-com-4-6_xsd Drilldown into settlementCurrency in schema fpml-com-4-6_xsd Drilldown into terminationDate in schema fpml-com-4-6_xsd Drilldown into effectiveDate in schema fpml-com-4-6_xsd Drilldown into productId in schema fpml-shared-4-6_xsd Drilldown into productType in schema fpml-shared-4-6_xsd Drilldown into Product.model in schema fpml-shared-4-6_xsd Drilldown into id in schema fpml-shared-4-6_xsd Drilldown into Product in schema fpml-shared-4-6_xsd Drilldown into CommoditySwap in schema fpml-com-4-6_xsdXSD Diagram of commoditySwap in schema fpml-com-4-6_xsd (Financial products Markup Language (FpML®))
Collapse XSD Schema Code:
<xsd:element name="commoditySwap" type="CommoditySwap" substitutionGroup="product">
    <xsd:annotation>
        <xsd:documentation xml:lang="en">Defines a commodity swap product.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
productType fpml:productType 0 unbounded
productId fpml:productId 0 unbounded
effectiveDate fpml:effectiveDate (1) (1)
terminationDate fpml:terminationDate (1) (1)
settlementCurrency fpml:settlementCurrency (1) (1)
fixedLeg fpml:fixedLeg (1) (1)
floatingLeg fpml:floatingLeg (1) (1)
coalPhysicalLeg fpml:coalPhysicalLeg (1) (1)
electricityPhysicalLeg fpml:electricityPhysicalLeg (1) (1)
gasPhysicalLeg fpml:gasPhysicalLeg (1) (1)
oilPhysicalLeg fpml:oilPhysicalLeg (1) (1)
commonPricing fpml:commonPricing 0 (1)
marketDisruption fpml:marketDisruption 0 (1)
settlementDisruption fpml:settlementDisruption 0 (1)
rounding fpml:rounding 0 (1)
<xs:group> fpml:CommodityContent.model 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id fpml:id (Optional)
Collapse Derivation Tree:
Collapse References:
fpml:product
