Documentation for Health Level Seven (HL7)
Definition Type: Element
Name: ADT_A01
Namespace: urn:hl7-org:v2xml
Type: nsA:ADT_A01.CONTENT
Containing Schema: ADT_A01.xsd
Abstract

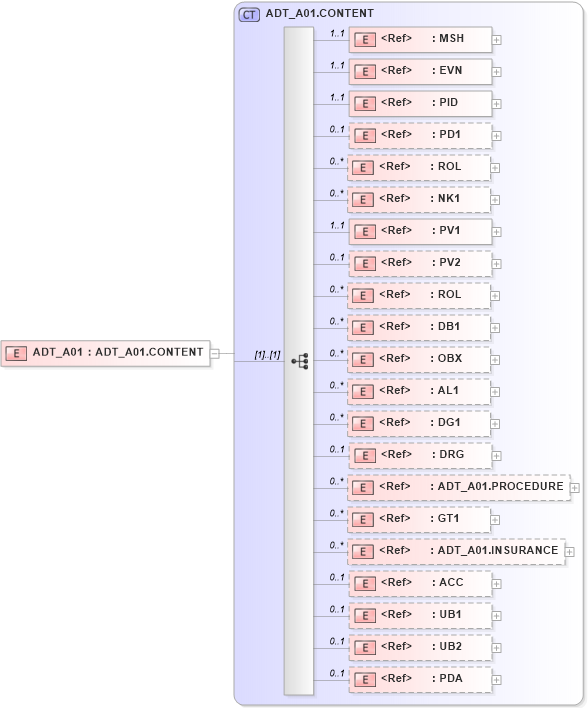

Collapse XSD Schema Diagram:
Drilldown into PDA in schema segments_xsd Drilldown into UB2 in schema segments_xsd Drilldown into UB1 in schema segments_xsd Drilldown into ACC in schema segments_xsd Drilldown into ADT_A01.INSURANCE in schema adt_a01_xsd Drilldown into GT1 in schema segments_xsd Drilldown into ADT_A01.PROCEDURE in schema adt_a01_xsd Drilldown into DRG in schema segments_xsd Drilldown into DG1 in schema segments_xsd Drilldown into AL1 in schema segments_xsd Drilldown into OBX in schema segments_xsd Drilldown into DB1 in schema segments_xsd Drilldown into ROL in schema segments_xsd Drilldown into PV2 in schema segments_xsd Drilldown into PV1 in schema segments_xsd Drilldown into NK1 in schema segments_xsd Drilldown into ROL in schema segments_xsd Drilldown into PD1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into EVN in schema segments_xsd Drilldown into MSH in schema segments_xsd Drilldown into ADT_A01.CONTENT in schema adt_a01_xsdXSD Diagram of ADT_A01 in schema adt_a01_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:element name="ADT_A01" type="ADT_A01.CONTENT">
    <xsd:annotation>
        <xsd:appinfo source="urn:com.sun:encoder">
            <top xmlns="urn:com.sun:encoder">true</top>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
EVN nsA:EVN 1 1
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
ROL nsA:ROL 0 unbounded
NK1 nsA:NK1 0 unbounded
PV1 nsA:PV1 1 1
PV2 nsA:PV2 0 1
ROL nsA:ROL 0 unbounded
DB1 nsA:DB1 0 unbounded
OBX nsA:OBX 0 unbounded
AL1 nsA:AL1 0 unbounded
DG1 nsA:DG1 0 unbounded
DRG nsA:DRG 0 1
ADT_A01.PROCEDURE nsA:ADT_A01.PROCEDURE 0 unbounded
GT1 nsA:GT1 0 unbounded
ADT_A01.INSURANCE nsA:ADT_A01.INSURANCE 0 unbounded
ACC nsA:ACC 0 1
UB1 nsA:UB1 0 1
UB2 nsA:UB2 0 1
PDA nsA:PDA 0 1
Collapse Derivation Tree:
