Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: DFT_P03.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: DFT_P03.xsd
Abstract

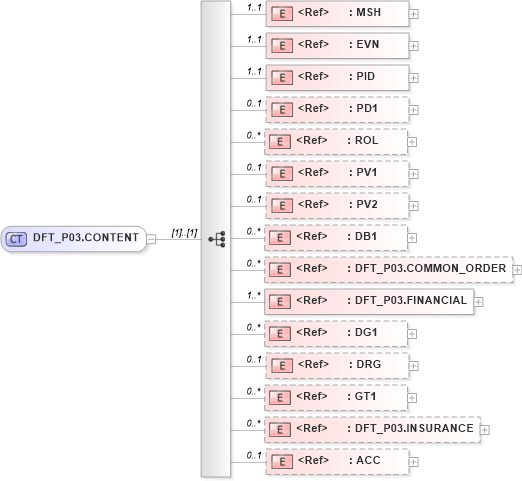

Collapse XSD Schema Diagram:
Drilldown into ACC in schema segments_xsd Drilldown into DFT_P03.INSURANCE in schema dft_p03_xsd Drilldown into GT1 in schema segments_xsd Drilldown into DRG in schema segments_xsd Drilldown into DG1 in schema segments_xsd Drilldown into DFT_P03.FINANCIAL in schema dft_p03_xsd Drilldown into DFT_P03.COMMON_ORDER in schema dft_p03_xsd Drilldown into DB1 in schema segments_xsd Drilldown into PV2 in schema segments_xsd Drilldown into PV1 in schema segments_xsd Drilldown into ROL in schema segments_xsd Drilldown into PD1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into EVN in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of DFT_P03.CONTENT in schema dft_p03_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="DFT_P03.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="EVN" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PD1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ROL" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PV1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PV2" minOccurs="0" maxOccurs="1" />
        <!-- Liquid removed as ambigous
            <xsd:element ref="ROL" minOccurs="0" maxOccurs="unbounded"/>-->
        <xsd:element ref="DB1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DFT_P03.COMMON_ORDER" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DFT_P03.FINANCIAL" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="DG1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DRG" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="GT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DFT_P03.INSURANCE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ACC" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
EVN nsA:EVN 1 1
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
ROL nsA:ROL 0 unbounded
PV1 nsA:PV1 0 1
PV2 nsA:PV2 0 1
DB1 nsA:DB1 0 unbounded
DFT_P03.COMMON_ORDER nsA:DFT_P03.COMMON_ORDER 0 unbounded
DFT_P03.FINANCIAL nsA:DFT_P03.FINANCIAL 1 unbounded
DG1 nsA:DG1 0 unbounded
DRG nsA:DRG 0 1
GT1 nsA:GT1 0 unbounded
DFT_P03.INSURANCE nsA:DFT_P03.INSURANCE 0 unbounded
ACC nsA:ACC 0 1
Collapse Derivation Tree:
Collapse References:
nsA:DFT_P03
