Definition Type: Element
Name: AssessmentOrderRequest
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:AssessmentOrderRequestType
Containing Schema: AssessmentOrderRequest.xsd
Abstract
Documentation:
Root element for AssessmentOrderRequest schema, which is designed to hold data necessary to initiate an assessment request.

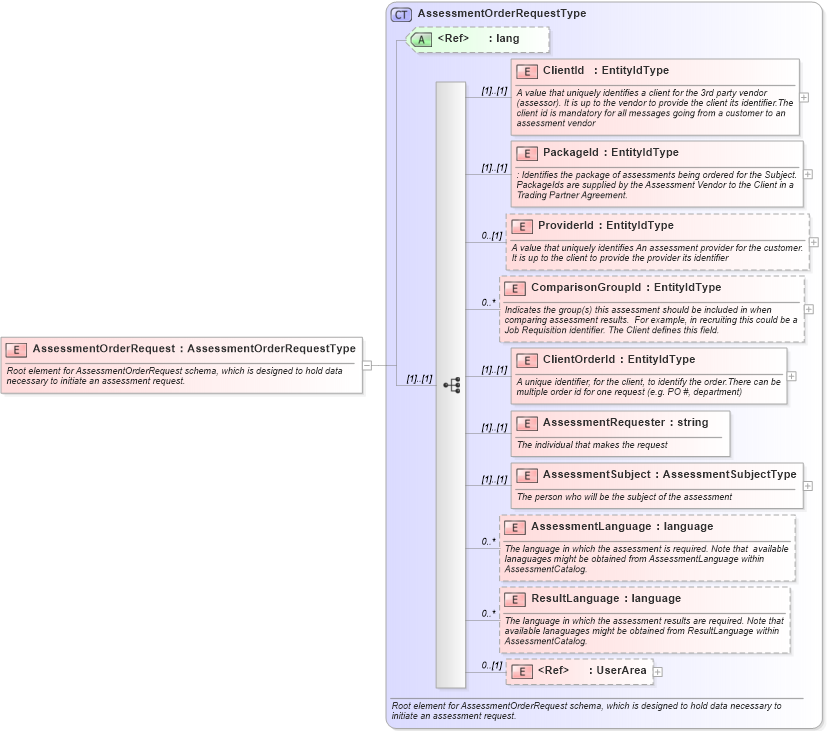

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into ResultLanguage in schema assessmentorderrequest_xsd Drilldown into AssessmentLanguage in schema assessmentorderrequest_xsd Drilldown into AssessmentSubject in schema assessmentorderrequest_xsd Drilldown into AssessmentRequester in schema assessmentorderrequest_xsd Drilldown into ClientOrderId in schema assessmentorderrequest_xsd Drilldown into ComparisonGroupId in schema assessmentorderrequest_xsd Drilldown into ProviderId in schema assessmentorderrequest_xsd Drilldown into PackageId in schema assessmentorderrequest_xsd Drilldown into ClientId in schema assessmentorderrequest_xsd Drilldown into lang in schema xml_xsd Drilldown into AssessmentOrderRequestType in schema assessmentorderrequest_xsdXSD Diagram of AssessmentOrderRequest in schema assessmentorderrequest_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AssessmentOrderRequest" type="AssessmentOrderRequestType">
    <xsd:annotation>
        <xsd:documentation>Root element for AssessmentOrderRequest schema, which is designed to hold data necessary to initiate an assessment request.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClientId hr:ClientId (1) (1)
PackageId hr:PackageId (1) (1)
ProviderId hr:ProviderId 0 (1)
ComparisonGroupId hr:ComparisonGroupId 0 unbounded
ClientOrderId hr:ClientOrderId (1) (1)
AssessmentRequester hr:AssessmentRequester (1) (1)
AssessmentSubject hr:AssessmentSubject (1) (1)
AssessmentLanguage hr:AssessmentLanguage 0 unbounded
ResultLanguage hr:ResultLanguage 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
