Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: AssessmentResult
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:AssessmentResultType
Containing Schema: AssessmentResult.xsd
Abstract
Documentation:
Root element for AssessmentResult schema, which is designed to hold data necessary to convey information on the results of the assessment

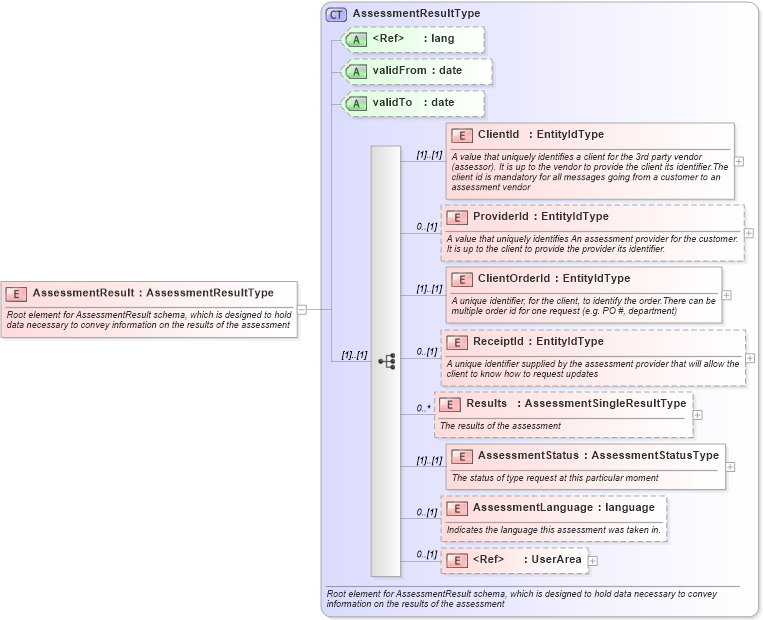

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into AssessmentLanguage in schema assessmentresult_xsd Drilldown into AssessmentStatus in schema assessmentresult_xsd Drilldown into Results in schema assessmentresult_xsd Drilldown into ReceiptId in schema assessmentresult_xsd Drilldown into ClientOrderId in schema assessmentresult_xsd Drilldown into ProviderId in schema assessmentresult_xsd Drilldown into ClientId in schema assessmentresult_xsd Drilldown into validTo in schema assessmentresult_xsd Drilldown into validFrom in schema assessmentresult_xsd Drilldown into lang in schema xml_xsd Drilldown into AssessmentResultType in schema assessmentresult_xsdXSD Diagram of AssessmentResult in schema assessmentresult_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AssessmentResult" type="AssessmentResultType">
    <xsd:annotation>
        <xsd:documentation>Root element for AssessmentResult schema, which is designed to hold data necessary to convey information on the results of the assessment</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClientId hr:ClientId (1) (1)
ProviderId hr:ProviderId 0 (1)
ClientOrderId hr:ClientOrderId (1) (1)
ReceiptId hr:ReceiptId 0 (1)
Results hr:Results 0 unbounded
AssessmentStatus hr:AssessmentStatus (1) (1)
AssessmentLanguage hr:AssessmentLanguage 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
validFrom hr:validFrom Optional
validTo hr:validTo Optional
Collapse Derivation Tree:
