Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AssessmentResultType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: AssessmentResult.xsd
Abstract
Documentation:
Root element for AssessmentResult schema, which is designed to hold data necessary to convey information on the results of the assessment

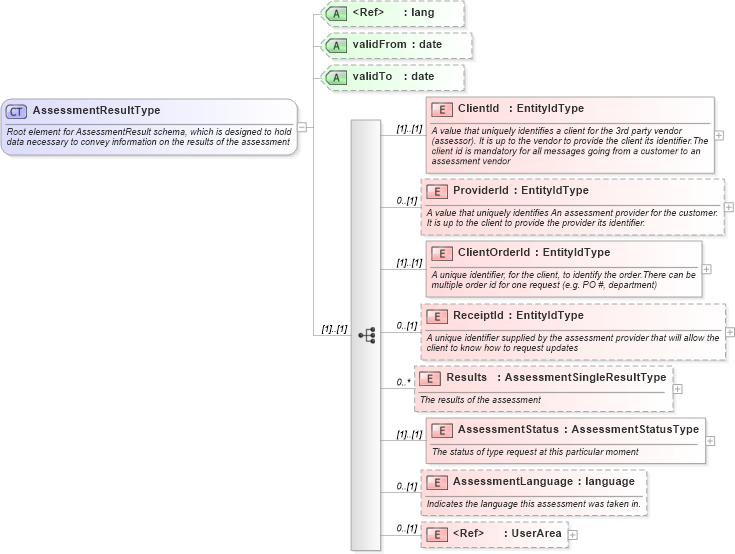

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into AssessmentLanguage in schema assessmentresult_xsd Drilldown into AssessmentStatus in schema assessmentresult_xsd Drilldown into Results in schema assessmentresult_xsd Drilldown into ReceiptId in schema assessmentresult_xsd Drilldown into ClientOrderId in schema assessmentresult_xsd Drilldown into ProviderId in schema assessmentresult_xsd Drilldown into ClientId in schema assessmentresult_xsd Drilldown into validTo in schema assessmentresult_xsd Drilldown into validFrom in schema assessmentresult_xsd Drilldown into lang in schema xml_xsdXSD Diagram of AssessmentResultType in schema assessmentresult_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentResultType">
    <xsd:annotation>
        <xsd:documentation>Root element for AssessmentResult schema, which is designed to hold data necessary to convey information on the results of the assessment</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ClientId" type="EntityIdType">
            <xsd:annotation>
                <xsd:documentation>A value that uniquely identifies a client for the 3rd party vendor (assessor). It is up to the vendor to provide the client its identifier.The client id is mandatory for all messages going from a customer to an assessment vendor</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ProviderId" type="EntityIdType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>A value that uniquely identifies An assessment provider for the customer. It is up to the client to provide the provider its identifier.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ClientOrderId" type="EntityIdType">
            <xsd:annotation>
                <xsd:documentation>A unique identifier, for the client, to identify the order.There can be multiple order id for one request (e.g. PO #, department)</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ReceiptId" type="EntityIdType" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>A unique identifier supplied by the assessment provider that will allow the client to know how to request updates</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Results" type="AssessmentSingleResultType" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>The results of the assessment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="AssessmentStatus" type="AssessmentStatusType">
            <xsd:annotation>
                <xsd:documentation>The status of type request at this particular moment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="AssessmentLanguage" type="xsd:language" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Indicates the language this assessment was taken in.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute ref="xml:lang" />
    <xsd:attribute name="validFrom" type="xsd:date" use="optional" />
    <xsd:attribute name="validTo" type="xsd:date" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClientId hr:ClientId (1) (1)
ProviderId hr:ProviderId 0 (1)
ClientOrderId hr:ClientOrderId (1) (1)
ReceiptId hr:ReceiptId 0 (1)
Results hr:Results 0 unbounded
AssessmentStatus hr:AssessmentStatus (1) (1)
AssessmentLanguage hr:AssessmentLanguage 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
validFrom hr:validFrom Optional
validTo hr:validTo Optional
Collapse Derivation Tree:
Collapse References:
hr:AssessmentResult, hr:AssessmentResult
