Definition Type: ComplexType
Name: CalculatedScheduleTableEntryType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: CalculatedValues.xsd
Abstract

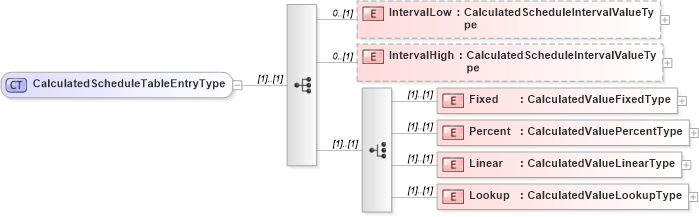

Collapse XSD Schema Diagram:
Drilldown into Lookup in schema calculatedvalues_xsd Drilldown into Linear in schema calculatedvalues_xsd Drilldown into Percent in schema calculatedvalues_xsd Drilldown into Fixed in schema calculatedvalues_xsd Drilldown into IntervalHigh in schema calculatedvalues_xsd Drilldown into IntervalLow in schema calculatedvalues_xsdXSD Diagram of CalculatedScheduleTableEntryType in schema calculatedvalues_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CalculatedScheduleTableEntryType">
    <xsd:sequence>
        <xsd:element name="IntervalLow" type="CalculatedScheduleIntervalValueType" minOccurs="0" />
        <xsd:element name="IntervalHigh" type="CalculatedScheduleIntervalValueType" minOccurs="0" />
        <xsd:choice>
            <xsd:element name="Fixed" type="CalculatedValueFixedType" />
            <xsd:element name="Percent" type="CalculatedValuePercentType" />
            <xsd:element name="Linear" type="CalculatedValueLinearType" />
            <xsd:element name="Lookup" type="CalculatedValueLookupType" />
        </xsd:choice>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IntervalLow hr:IntervalLow 0 (1)
IntervalHigh hr:IntervalHigh 0 (1)
Fixed hr:Fixed (1) (1)
Percent hr:Percent (1) (1)
Linear hr:Linear (1) (1)
Lookup hr:Lookup (1) (1)
Collapse Derivation Tree:
Collapse References:
hr:ScheduleTableEntry
