Definition Type: Element
Name: ScheduleTableEntry
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:CalculatedScheduleTableEntryType
Containing Schema: CalculatedValues.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

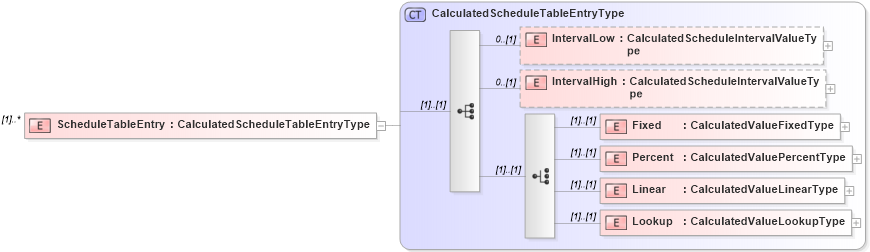

Collapse XSD Schema Diagram:
Drilldown into Lookup in schema calculatedvalues_xsd Drilldown into Linear in schema calculatedvalues_xsd Drilldown into Percent in schema calculatedvalues_xsd Drilldown into Fixed in schema calculatedvalues_xsd Drilldown into IntervalHigh in schema calculatedvalues_xsd Drilldown into IntervalLow in schema calculatedvalues_xsd Drilldown into CalculatedScheduleTableEntryType in schema calculatedvalues_xsdXSD Diagram of ScheduleTableEntry in schema calculatedvalues_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ScheduleTableEntry" type="CalculatedScheduleTableEntryType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IntervalLow hr:IntervalLow 0 (1)
IntervalHigh hr:IntervalHigh 0 (1)
Fixed hr:Fixed (1) (1)
Percent hr:Percent (1) (1)
Linear hr:Linear (1) (1)
Lookup hr:Lookup (1) (1)
Collapse Derivation Tree:
