Definition Type: Element
Name: CandidateProfile
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:CandidateProfileType
Containing Schema: Candidate.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

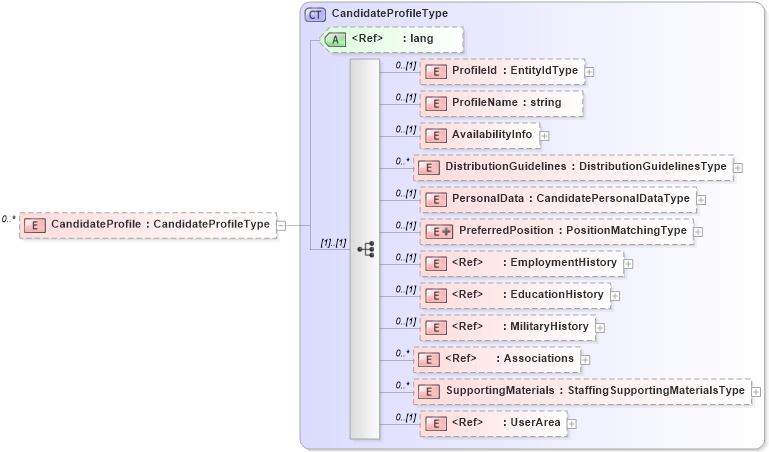

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into SupportingMaterials in schema candidate_xsd Drilldown into Associations in schema sharedstaffingmodules_xsd Drilldown into MilitaryHistory in schema militaryhistory_xsd Drilldown into EducationHistory in schema educationhistory_xsd Drilldown into EmploymentHistory in schema employmenthistory_xsd Drilldown into PreferredPosition in schema candidate_xsd Drilldown into PersonalData in schema candidate_xsd Drilldown into DistributionGuidelines in schema candidate_xsd Drilldown into AvailabilityInfo in schema candidate_xsd Drilldown into ProfileName in schema candidate_xsd Drilldown into ProfileId in schema candidate_xsd Drilldown into lang in schema xml_xsd Drilldown into CandidateProfileType in schema candidate_xsdXSD Diagram of CandidateProfile in schema candidate_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="CandidateProfile" type="CandidateProfileType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfileId hr:ProfileId 0 (1)
ProfileName hr:ProfileName 0 (1)
AvailabilityInfo hr:AvailabilityInfo 0 (1)
DistributionGuidelines hr:DistributionGuidelines 0 unbounded
PersonalData hr:PersonalData 0 (1)
PreferredPosition hr:PreferredPosition 0 (1)
EmploymentHistory hr:EmploymentHistory 0 (1)
EducationHistory hr:EducationHistory 0 (1)
MilitaryHistory hr:MilitaryHistory 0 (1)
Associations hr:Associations 0 unbounded
SupportingMaterials hr:SupportingMaterials 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
