Definition Type: ComplexType
Name: CandidateProfileType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Candidate.xsd
Abstract
Collapse XSD Schema Diagram:

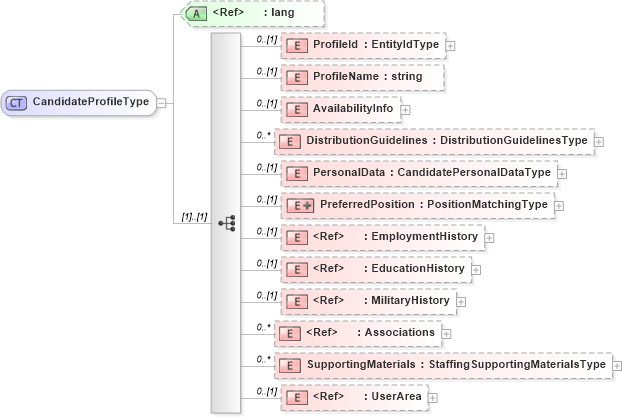

Drilldown into UserArea in schema userarea_xsd Drilldown into SupportingMaterials in schema candidate_xsd Drilldown into Associations in schema sharedstaffingmodules_xsd Drilldown into MilitaryHistory in schema militaryhistory_xsd Drilldown into EducationHistory in schema educationhistory_xsd Drilldown into EmploymentHistory in schema employmenthistory_xsd Drilldown into PreferredPosition in schema candidate_xsd Drilldown into PersonalData in schema candidate_xsd Drilldown into DistributionGuidelines in schema candidate_xsd Drilldown into AvailabilityInfo in schema candidate_xsd Drilldown into ProfileName in schema candidate_xsd Drilldown into ProfileId in schema candidate_xsd Drilldown into lang in schema xml_xsdXSD Diagram of CandidateProfileType in schema candidate_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CandidateProfileType">
    <xsd:sequence>
        <xsd:element name="ProfileId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="ProfileName" type="xsd:string" minOccurs="0" />
        <xsd:element name="AvailabilityInfo" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="AvailabilityDates" minOccurs="0" maxOccurs="unbounded">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="StartDate" type="LocalDateNkNaType" minOccurs="0" />
                                <xsd:element name="EndDate" type="LocalDateNkNaType" minOccurs="0" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="TermOfNotice" minOccurs="0">
                        <xsd:complexType>
                            <xsd:sequence>
                                <xsd:element name="Value" type="xsd:integer" />
                                <xsd:element name="Interval" type="NoticeFrequencyType" />
                            </xsd:sequence>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="DistributionGuidelines" type="DistributionGuidelinesType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="PersonalData" type="CandidatePersonalDataType" minOccurs="0" />
        <xsd:element name="PreferredPosition" minOccurs="0">
            <xsd:complexType>
                <xsd:complexContent>
                    <xsd:extension base="PositionMatchingType">
                        <xsd:sequence>
                            <xsd:element name="Commute" type="CommuteType" minOccurs="0" />
                        </xsd:sequence>
                    </xsd:extension>
                </xsd:complexContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="EmploymentHistory" minOccurs="0" />
        <xsd:element ref="EducationHistory" minOccurs="0" />
        <xsd:element ref="MilitaryHistory" minOccurs="0" />
        <xsd:element ref="Associations" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element name="SupportingMaterials" type="StaffingSupportingMaterialsType" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute ref="xml:lang" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfileId hr:ProfileId 0 (1)
ProfileName hr:ProfileName 0 (1)
AvailabilityInfo hr:AvailabilityInfo 0 (1)
DistributionGuidelines hr:DistributionGuidelines 0 unbounded
PersonalData hr:PersonalData 0 (1)
PreferredPosition hr:PreferredPosition 0 (1)
EmploymentHistory hr:EmploymentHistory 0 (1)
EducationHistory hr:EducationHistory 0 (1)
MilitaryHistory hr:MilitaryHistory 0 (1)
Associations hr:Associations 0 unbounded
SupportingMaterials hr:SupportingMaterials 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
Collapse References:
hr:CandidateProfile
