Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ContactMethod
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:ContactMethodType
Containing Schema: NewHire.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

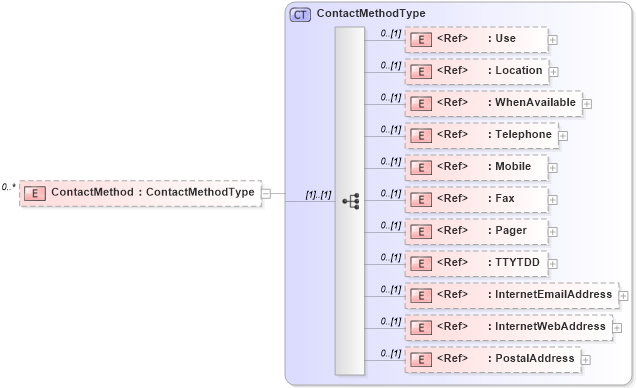

Collapse XSD Schema Diagram:
Drilldown into PostalAddress in schema postaladdress_xsd Drilldown into InternetWebAddress in schema onlineaddress_xsd Drilldown into InternetEmailAddress in schema onlineaddress_xsd Drilldown into TTYTDD in schema telcomnumber_xsd Drilldown into Pager in schema telcomnumber_xsd Drilldown into Fax in schema telcomnumber_xsd Drilldown into Mobile in schema telcomnumber_xsd Drilldown into Telephone in schema telcomnumber_xsd Drilldown into WhenAvailable in schema contactmethod_xsd Drilldown into Location in schema contactmethod_xsd Drilldown into Use in schema contactmethod_xsd Drilldown into ContactMethodType in schema contactmethod_xsdXSD Diagram of ContactMethod in schema newhire_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ContactMethod" type="ContactMethodType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Use hr:Use 0 (1)
Location hr:Location 0 (1)
WhenAvailable hr:WhenAvailable 0 (1)
Telephone hr:Telephone 0 (1)
Mobile hr:Mobile 0 (1)
Fax hr:Fax 0 (1)
Pager hr:Pager 0 (1)
TTYTDD hr:TTYTDD 0 (1)
InternetEmailAddress hr:InternetEmailAddress 0 (1)
InternetWebAddress hr:InternetWebAddress 0 (1)
PostalAddress hr:PostalAddress 0 (1)
Collapse Derivation Tree:
