Definition Type: ComplexType
Name: ContactMethodType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: ContactMethod.xsd
Abstract

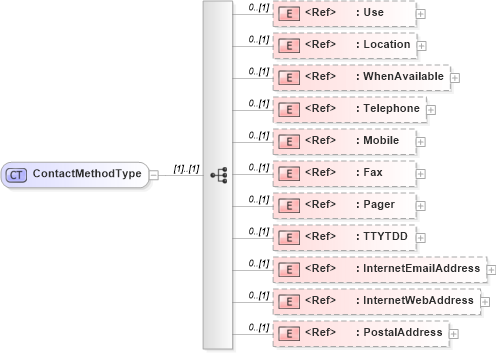

Collapse XSD Schema Diagram:
Drilldown into PostalAddress in schema postaladdress_xsd Drilldown into InternetWebAddress in schema onlineaddress_xsd Drilldown into InternetEmailAddress in schema onlineaddress_xsd Drilldown into TTYTDD in schema telcomnumber_xsd Drilldown into Pager in schema telcomnumber_xsd Drilldown into Fax in schema telcomnumber_xsd Drilldown into Mobile in schema telcomnumber_xsd Drilldown into Telephone in schema telcomnumber_xsd Drilldown into WhenAvailable in schema contactmethod_xsd Drilldown into Location in schema contactmethod_xsd Drilldown into Use in schema contactmethod_xsdXSD Diagram of ContactMethodType in schema contactmethod_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ContactMethodType">
    <xsd:sequence>
        <xsd:element ref="Use" minOccurs="0" />
        <xsd:element ref="Location" minOccurs="0" />
        <xsd:element ref="WhenAvailable" minOccurs="0" />
        <xsd:element ref="Telephone" minOccurs="0" />
        <xsd:element ref="Mobile" minOccurs="0" />
        <xsd:element ref="Fax" minOccurs="0" />
        <xsd:element ref="Pager" minOccurs="0" />
        <xsd:element ref="TTYTDD" minOccurs="0" />
        <xsd:element ref="InternetEmailAddress" minOccurs="0" />
        <xsd:element ref="InternetWebAddress" minOccurs="0" />
        <xsd:element ref="PostalAddress" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Use hr:Use 0 (1)
Location hr:Location 0 (1)
WhenAvailable hr:WhenAvailable 0 (1)
Telephone hr:Telephone 0 (1)
Mobile hr:Mobile 0 (1)
Fax hr:Fax 0 (1)
Pager hr:Pager 0 (1)
TTYTDD hr:TTYTDD 0 (1)
InternetEmailAddress hr:InternetEmailAddress 0 (1)
InternetWebAddress hr:InternetWebAddress 0 (1)
PostalAddress hr:PostalAddress 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:AccessPoint, hr:ContactInfo, hr:ContactInfohr:ContactInfo, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactInformation, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:ContactMethod, hr:EffectiveDatedContactMethodWithPrecedenceType,
