Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EffectiveDatedPersonNameType
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:PersonNameType
Containing Schema: PersonalInfoTypes.xsd
Abstract

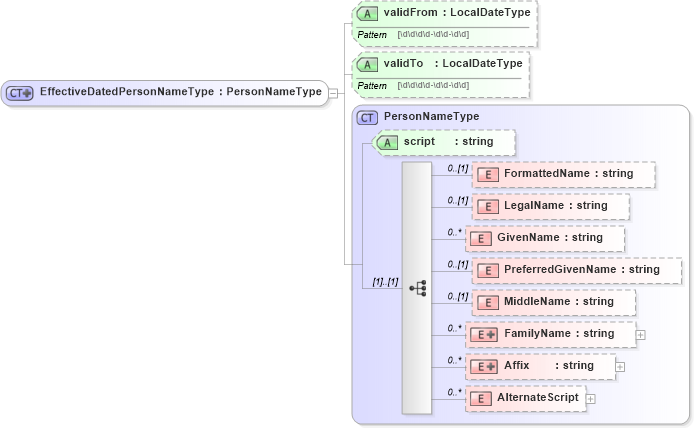

Collapse XSD Schema Diagram:
Drilldown into AlternateScript in schema personname_xsd Drilldown into Affix in schema personname_xsd Drilldown into FamilyName in schema personname_xsd Drilldown into MiddleName in schema personname_xsd Drilldown into PreferredGivenName in schema personname_xsd Drilldown into GivenName in schema personname_xsd Drilldown into LegalName in schema personname_xsd Drilldown into FormattedName in schema personname_xsd Drilldown into script in schema personname_xsd Drilldown into PersonNameType in schema personname_xsd Drilldown into validTo in schema personalinfotypes_xsd Drilldown into validFrom in schema personalinfotypes_xsdXSD Diagram of EffectiveDatedPersonNameType in schema personalinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EffectiveDatedPersonNameType">
    <xsd:complexContent>
        <xsd:extension base="PersonNameType">
            <xsd:attribute name="validFrom" type="LocalDateType" use="optional" />
            <xsd:attribute name="validTo" type="LocalDateType" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormattedName hr:FormattedName 0 (1)
LegalName hr:LegalName 0 (1)
GivenName hr:GivenName 0 unbounded
PreferredGivenName hr:PreferredGivenName 0 (1)
MiddleName hr:MiddleName 0 (1)
FamilyName hr:FamilyName 0 unbounded
Affix hr:Affix 0 unbounded
AlternateScript hr:AlternateScript 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
script hr:script (Optional)
validFrom hr:validFrom Optional
validTo hr:validTo Optional
Collapse Derivation Tree:
Collapse References:
hr:PersonName
