Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: EmployerOrg
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:EmployerOrgDataType
Containing Schema: EmploymentHistory.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

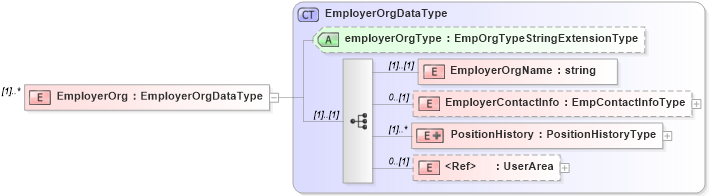

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into PositionHistory in schema employmenthistory_xsd Drilldown into EmployerContactInfo in schema employmenthistory_xsd Drilldown into EmployerOrgName in schema employmenthistory_xsd Drilldown into employerOrgType in schema employmenthistory_xsd Drilldown into EmployerOrgDataType in schema employmenthistory_xsdXSD Diagram of EmployerOrg in schema employmenthistory_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="EmployerOrg" type="EmployerOrgDataType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmployerOrgName hr:EmployerOrgName (1) (1)
EmployerContactInfo hr:EmployerContactInfo 0 (1)
PositionHistory hr:PositionHistory (1) unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
employerOrgType hr:employerOrgType (Optional)
Collapse Derivation Tree:
