Definition Type: ComplexType
Name: EmployerOrgDataType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: EmploymentHistory.xsd
Abstract

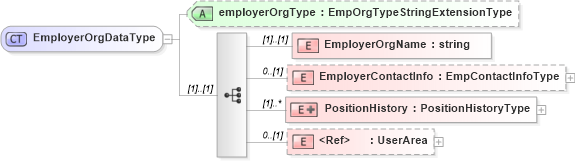

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into PositionHistory in schema employmenthistory_xsd Drilldown into EmployerContactInfo in schema employmenthistory_xsd Drilldown into EmployerOrgName in schema employmenthistory_xsd Drilldown into employerOrgType in schema employmenthistory_xsdXSD Diagram of EmployerOrgDataType in schema employmenthistory_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="EmployerOrgDataType">
    <xsd:sequence>
        <xsd:element name="EmployerOrgName" type="xsd:string" />
        <xsd:element name="EmployerContactInfo" type="EmpContactInfoType" minOccurs="0" />
        <xsd:element name="PositionHistory" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:complexContent>
                    <xsd:extension base="PositionHistoryType" />
                </xsd:complexContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="employerOrgType" type="EmpOrgTypeStringExtensionType" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmployerOrgName hr:EmployerOrgName (1) (1)
EmployerContactInfo hr:EmployerContactInfo 0 (1)
PositionHistory hr:PositionHistory (1) unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
employerOrgType hr:employerOrgType (Optional)
Collapse Derivation Tree:
Collapse References:
hr:EmployerOrg
