Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: HireInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndHireInfoType
Containing Schema: EmploymentInfoTypes.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

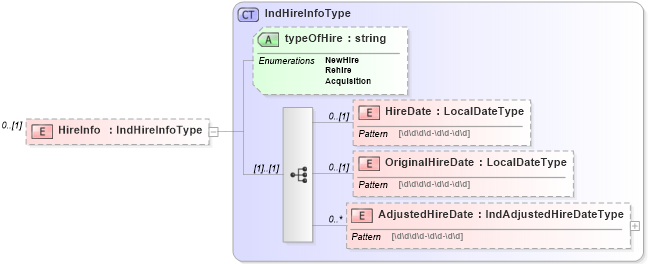

Collapse XSD Schema Diagram:
Drilldown into AdjustedHireDate in schema employmentinfotypes_xsd Drilldown into OriginalHireDate in schema employmentinfotypes_xsd Drilldown into HireDate in schema employmentinfotypes_xsd Drilldown into typeOfHire in schema employmentinfotypes_xsd Drilldown into IndHireInfoType in schema employmentinfotypes_xsdXSD Diagram of HireInfo in schema employmentinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="HireInfo" type="IndHireInfoType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HireDate hr:HireDate 0 (1)
OriginalHireDate hr:OriginalHireDate 0 (1)
AdjustedHireDate hr:AdjustedHireDate 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
typeOfHire hr:typeOfHire (Optional)
Collapse Derivation Tree:
