Definition Type: ComplexType
Name: IndHireInfoType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: EmploymentInfoTypes.xsd
Abstract
Collapse XSD Schema Diagram:

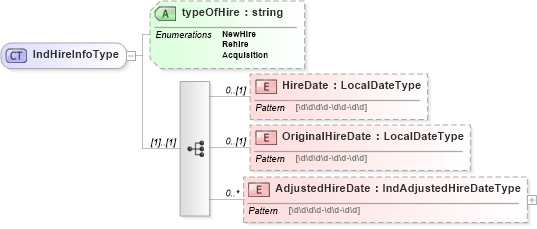

Drilldown into AdjustedHireDate in schema employmentinfotypes_xsd Drilldown into OriginalHireDate in schema employmentinfotypes_xsd Drilldown into HireDate in schema employmentinfotypes_xsd Drilldown into typeOfHire in schema employmentinfotypes_xsdXSD Diagram of IndHireInfoType in schema employmentinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndHireInfoType">
    <xsd:sequence>
        <xsd:element name="HireDate" type="LocalDateType" minOccurs="0" />
        <xsd:element name="OriginalHireDate" type="LocalDateType" minOccurs="0" />
        <xsd:element name="AdjustedHireDate" type="IndAdjustedHireDateType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="typeOfHire">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="NewHire" />
                <xsd:enumeration value="Rehire" />
                <xsd:enumeration value="Acquisition" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
HireDate hr:HireDate 0 (1)
OriginalHireDate hr:OriginalHireDate 0 (1)
AdjustedHireDate hr:AdjustedHireDate 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
typeOfHire hr:typeOfHire (Optional)
Collapse Derivation Tree:
Collapse References:
hr:HireInfo
