Definition Type: ComplexType
Name: IndLOAInfoType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: EmploymentInfoTypes.xsd
Abstract

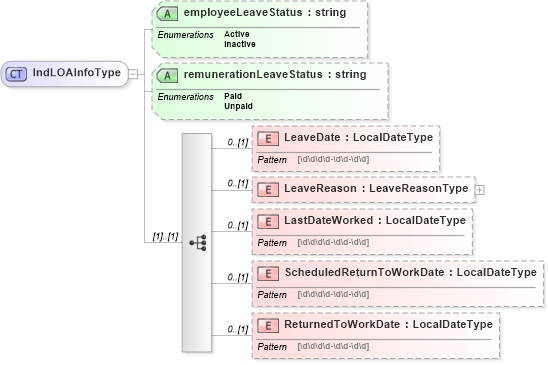

Collapse XSD Schema Diagram:
Drilldown into ReturnedToWorkDate in schema employmentinfotypes_xsd Drilldown into ScheduledReturnToWorkDate in schema employmentinfotypes_xsd Drilldown into LastDateWorked in schema employmentinfotypes_xsd Drilldown into LeaveReason in schema employmentinfotypes_xsd Drilldown into LeaveDate in schema employmentinfotypes_xsd Drilldown into remunerationLeaveStatus in schema employmentinfotypes_xsd Drilldown into employeeLeaveStatus in schema employmentinfotypes_xsdXSD Diagram of IndLOAInfoType in schema employmentinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndLOAInfoType">
    <xsd:sequence>
        <xsd:element name="LeaveDate" type="LocalDateType" minOccurs="0" />
        <xsd:element name="LeaveReason" type="LeaveReasonType" minOccurs="0" />
        <xsd:element name="LastDateWorked" type="LocalDateType" minOccurs="0" />
        <xsd:element name="ScheduledReturnToWorkDate" type="LocalDateType" minOccurs="0" />
        <xsd:element name="ReturnedToWorkDate" type="LocalDateType" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="employeeLeaveStatus">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="Active" />
                <xsd:enumeration value="Inactive" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="remunerationLeaveStatus">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="Paid" />
                <xsd:enumeration value="Unpaid" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LeaveDate hr:LeaveDate 0 (1)
LeaveReason hr:LeaveReason 0 (1)
LastDateWorked hr:LastDateWorked 0 (1)
ScheduledReturnToWorkDate hr:ScheduledReturnToWorkDate 0 (1)
ReturnedToWorkDate hr:ReturnedToWorkDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
employeeLeaveStatus hr:employeeLeaveStatus (Optional)
remunerationLeaveStatus hr:remunerationLeaveStatus (Optional)
Collapse Derivation Tree:
Collapse References:
hr:LeaveInfo
