Definition Type: Element
Name: LeaveInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndLOAInfoType
Containing Schema: EmploymentInfoTypes.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

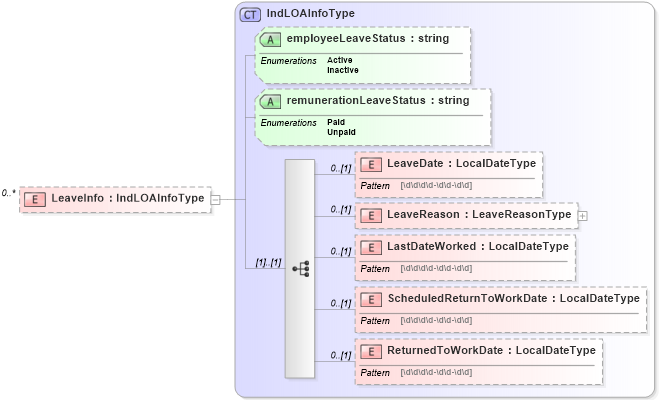

Collapse XSD Schema Diagram:
Drilldown into ReturnedToWorkDate in schema employmentinfotypes_xsd Drilldown into ScheduledReturnToWorkDate in schema employmentinfotypes_xsd Drilldown into LastDateWorked in schema employmentinfotypes_xsd Drilldown into LeaveReason in schema employmentinfotypes_xsd Drilldown into LeaveDate in schema employmentinfotypes_xsd Drilldown into remunerationLeaveStatus in schema employmentinfotypes_xsd Drilldown into employeeLeaveStatus in schema employmentinfotypes_xsd Drilldown into IndLOAInfoType in schema employmentinfotypes_xsdXSD Diagram of LeaveInfo in schema employmentinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="LeaveInfo" type="IndLOAInfoType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LeaveDate hr:LeaveDate 0 (1)
LeaveReason hr:LeaveReason 0 (1)
LastDateWorked hr:LastDateWorked 0 (1)
ScheduledReturnToWorkDate hr:ScheduledReturnToWorkDate 0 (1)
ReturnedToWorkDate hr:ReturnedToWorkDate 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
employeeLeaveStatus hr:employeeLeaveStatus (Optional)
remunerationLeaveStatus hr:remunerationLeaveStatus (Optional)
Collapse Derivation Tree:
