Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: IndPersonalInfoType
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndBasePersonalInfoType
Containing Schema: PersonalInfoTypes.xsd
Abstract

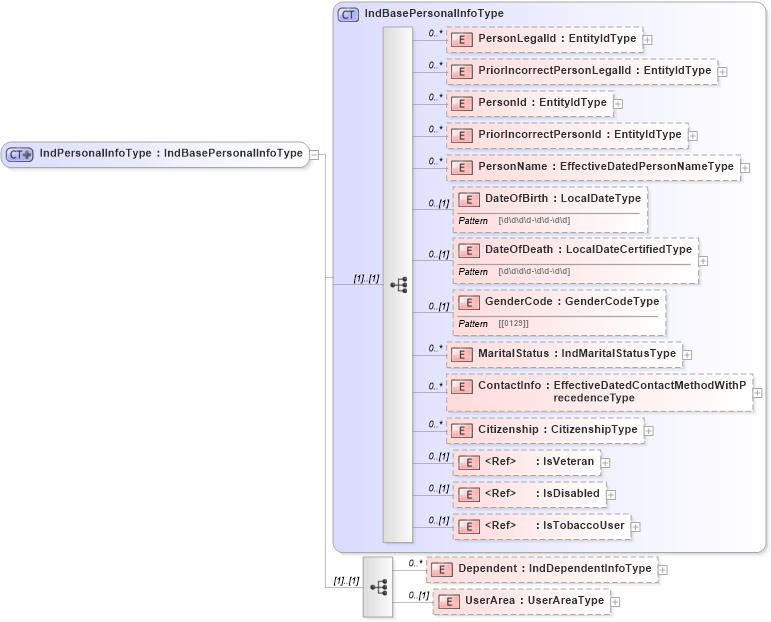

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema personalinfotypes_xsd Drilldown into Dependent in schema personalinfotypes_xsd Drilldown into IsTobaccoUser in schema uslocalizations_xsd2 Drilldown into IsDisabled in schema uslocalizations_xsd2 Drilldown into IsVeteran in schema uslocalizations_xsd2 Drilldown into Citizenship in schema personalinfotypes_xsd Drilldown into ContactInfo in schema personalinfotypes_xsd Drilldown into MaritalStatus in schema personalinfotypes_xsd Drilldown into GenderCode in schema personalinfotypes_xsd Drilldown into DateOfDeath in schema personalinfotypes_xsd Drilldown into DateOfBirth in schema personalinfotypes_xsd Drilldown into PersonName in schema personalinfotypes_xsd Drilldown into PriorIncorrectPersonId in schema personalinfotypes_xsd Drilldown into PersonId in schema personalinfotypes_xsd Drilldown into PriorIncorrectPersonLegalId in schema personalinfotypes_xsd Drilldown into PersonLegalId in schema personalinfotypes_xsd Drilldown into IndBasePersonalInfoType in schema personalinfotypes_xsdXSD Diagram of IndPersonalInfoType in schema personalinfotypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="IndPersonalInfoType">
    <xsd:complexContent>
        <xsd:extension base="IndBasePersonalInfoType">
            <xsd:sequence>
                <xsd:element name="Dependent" type="IndDependentInfoType" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="UserArea" type="UserAreaType" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonLegalId hr:PersonLegalId 0 unbounded
PriorIncorrectPersonLegalId hr:PriorIncorrectPersonLegalId 0 unbounded
PersonId hr:PersonId 0 unbounded
PriorIncorrectPersonId hr:PriorIncorrectPersonId 0 unbounded
PersonName hr:PersonName 0 unbounded
DateOfBirth hr:DateOfBirth 0 (1)
DateOfDeath hr:DateOfDeath 0 (1)
GenderCode hr:GenderCode 0 (1)
MaritalStatus hr:MaritalStatus 0 unbounded
ContactInfo hr:ContactInfo 0 unbounded
Citizenship hr:Citizenship 0 unbounded
IsVeteran hr:IsVeteran 0 (1)
IsDisabled hr:IsDisabled 0 (1)
IsTobaccoUser hr:IsTobaccoUser 0 (1)
Dependent hr:Dependent 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:PersonInfo
