Definition Type: Element
Name: PersonInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndPersonalInfoType
Containing Schema: IndicativeData.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

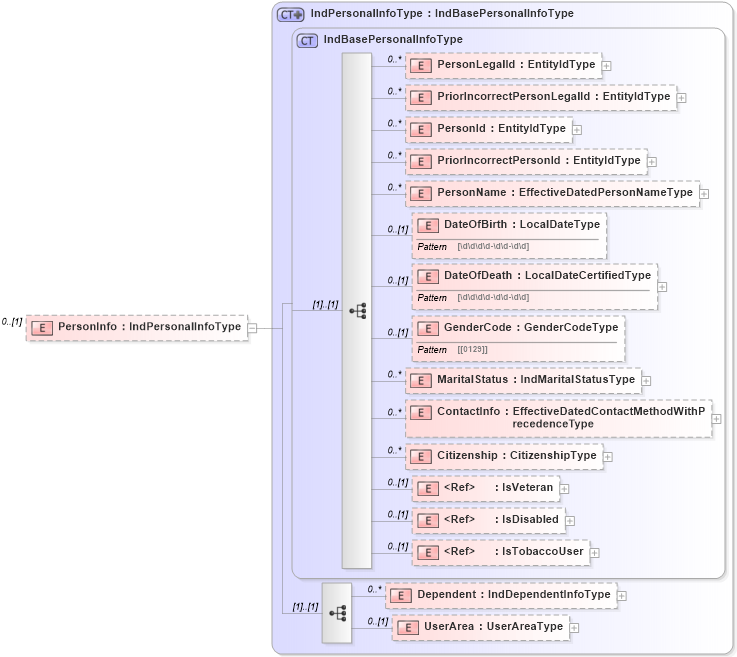

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema personalinfotypes_xsd Drilldown into Dependent in schema personalinfotypes_xsd Drilldown into IsTobaccoUser in schema uslocalizations_xsd2 Drilldown into IsDisabled in schema uslocalizations_xsd2 Drilldown into IsVeteran in schema uslocalizations_xsd2 Drilldown into Citizenship in schema personalinfotypes_xsd Drilldown into ContactInfo in schema personalinfotypes_xsd Drilldown into MaritalStatus in schema personalinfotypes_xsd Drilldown into GenderCode in schema personalinfotypes_xsd Drilldown into DateOfDeath in schema personalinfotypes_xsd Drilldown into DateOfBirth in schema personalinfotypes_xsd Drilldown into PersonName in schema personalinfotypes_xsd Drilldown into PriorIncorrectPersonId in schema personalinfotypes_xsd Drilldown into PersonId in schema personalinfotypes_xsd Drilldown into PriorIncorrectPersonLegalId in schema personalinfotypes_xsd Drilldown into PersonLegalId in schema personalinfotypes_xsd Drilldown into IndBasePersonalInfoType in schema personalinfotypes_xsd Drilldown into IndPersonalInfoType in schema personalinfotypes_xsdXSD Diagram of PersonInfo in schema indicativedata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="PersonInfo" type="IndPersonalInfoType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonLegalId hr:PersonLegalId 0 unbounded
PriorIncorrectPersonLegalId hr:PriorIncorrectPersonLegalId 0 unbounded
PersonId hr:PersonId 0 unbounded
PriorIncorrectPersonId hr:PriorIncorrectPersonId 0 unbounded
PersonName hr:PersonName 0 unbounded
DateOfBirth hr:DateOfBirth 0 (1)
DateOfDeath hr:DateOfDeath 0 (1)
GenderCode hr:GenderCode 0 (1)
MaritalStatus hr:MaritalStatus 0 unbounded
ContactInfo hr:ContactInfo 0 unbounded
Citizenship hr:Citizenship 0 unbounded
IsVeteran hr:IsVeteran 0 (1)
IsDisabled hr:IsDisabled 0 (1)
IsTobaccoUser hr:IsTobaccoUser 0 (1)
Dependent hr:Dependent 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
