Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: License
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:LicenseReportType
Containing Schema: BackgroundReports.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

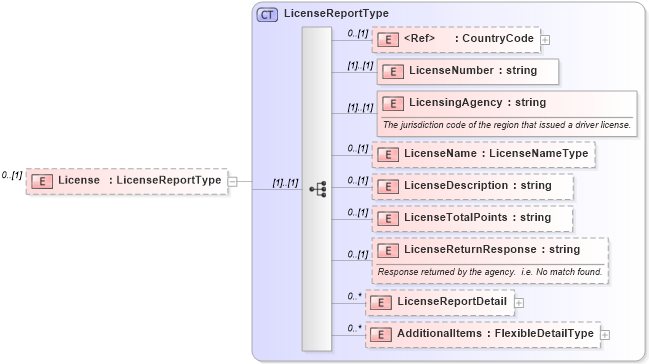

Collapse XSD Schema Diagram:
Drilldown into AdditionalItems in schema backgroundreports_xsd Drilldown into LicenseReportDetail in schema backgroundreports_xsd Drilldown into LicenseReturnResponse in schema backgroundreports_xsd Drilldown into LicenseTotalPoints in schema backgroundreports_xsd Drilldown into LicenseDescription in schema backgroundreports_xsd Drilldown into LicenseName in schema backgroundreports_xsd Drilldown into LicensingAgency in schema backgroundreports_xsd Drilldown into LicenseNumber in schema backgroundreports_xsd Drilldown into CountryCode in schema isoutilities_xsd Drilldown into LicenseReportType in schema backgroundreports_xsdXSD Diagram of License in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="License" type="LicenseReportType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CountryCode hr:CountryCode 0 (1)
LicenseNumber hr:LicenseNumber (1) (1)
LicensingAgency hr:LicensingAgency (1) (1)
LicenseName hr:LicenseName 0 (1)
LicenseDescription hr:LicenseDescription 0 (1)
LicenseTotalPoints hr:LicenseTotalPoints 0 (1)
LicenseReturnResponse hr:LicenseReturnResponse 0 (1)
LicenseReportDetail hr:LicenseReportDetail 0 unbounded
AdditionalItems hr:AdditionalItems 0 unbounded
Collapse Derivation Tree:
