Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Name
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:PersonNameType
Containing Schema: PublicationHistory.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

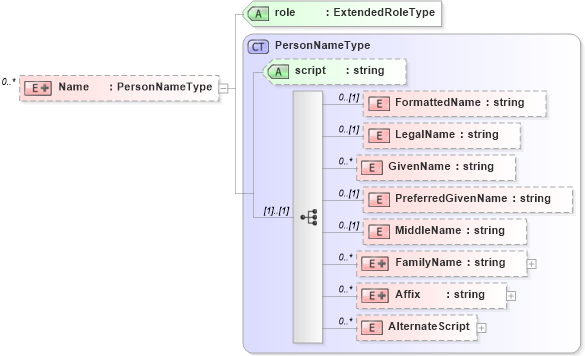

Collapse XSD Schema Diagram:
Drilldown into AlternateScript in schema personname_xsd Drilldown into Affix in schema personname_xsd Drilldown into FamilyName in schema personname_xsd Drilldown into MiddleName in schema personname_xsd Drilldown into PreferredGivenName in schema personname_xsd Drilldown into GivenName in schema personname_xsd Drilldown into LegalName in schema personname_xsd Drilldown into FormattedName in schema personname_xsd Drilldown into script in schema personname_xsd Drilldown into PersonNameType in schema personname_xsd Drilldown into role in schema publicationhistory_xsdXSD Diagram of Name in schema publicationhistory_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Name" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="PersonNameType">
                <xsd:attribute name="role" type="ExtendedRoleType" use="required" />
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormattedName hr:FormattedName 0 (1)
LegalName hr:LegalName 0 (1)
GivenName hr:GivenName 0 unbounded
PreferredGivenName hr:PreferredGivenName 0 (1)
MiddleName hr:MiddleName 0 (1)
FamilyName hr:FamilyName 0 unbounded
Affix hr:Affix 0 unbounded
AlternateScript hr:AlternateScript 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
script hr:script (Optional)
role hr:role Required
Collapse Derivation Tree:
