Definition Type: ComplexType
Name: OrderSubLine
Namespace: http://www.openapplications.org/oagis
Type: nsC:OrderLineBase
Containing Schema: Invoice.xsd
Abstract

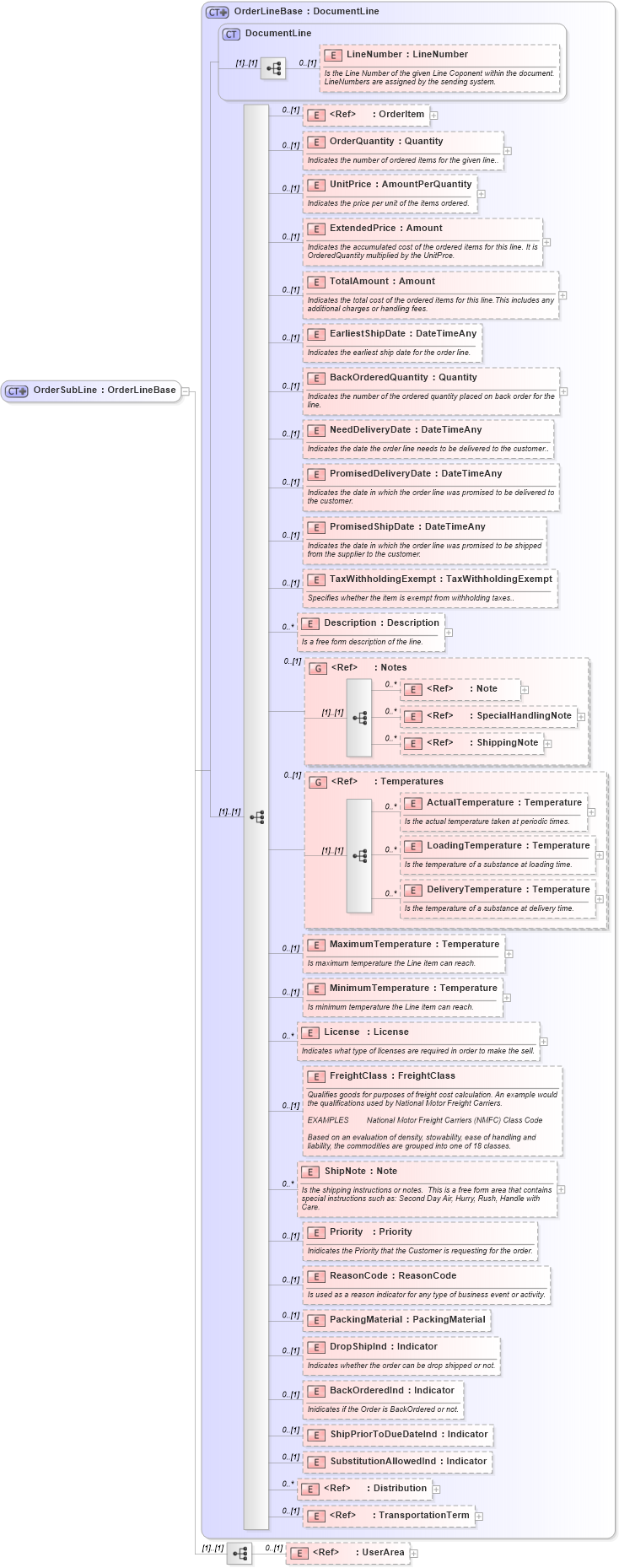

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema invoice_xsd Drilldown into TransportationTerm in schema invoice_xsd Drilldown into Distribution in schema invoice_xsd Drilldown into SubstitutionAllowedInd in schema invoice_xsd Drilldown into ShipPriorToDueDateInd in schema invoice_xsd Drilldown into BackOrderedInd in schema invoice_xsd Drilldown into DropShipInd in schema invoice_xsd Drilldown into PackingMaterial in schema invoice_xsd Drilldown into ReasonCode in schema invoice_xsd Drilldown into Priority in schema invoice_xsd Drilldown into ShipNote in schema invoice_xsd Drilldown into FreightClass in schema invoice_xsd Drilldown into License in schema invoice_xsd Drilldown into MinimumTemperature in schema invoice_xsd Drilldown into MaximumTemperature in schema invoice_xsd Drilldown into DeliveryTemperature in schema invoice_xsd Drilldown into LoadingTemperature in schema invoice_xsd Drilldown into ActualTemperature in schema invoice_xsd Drilldown into Temperatures in schema invoice_xsd Drilldown into ShippingNote in schema invoice_xsd Drilldown into SpecialHandlingNote in schema invoice_xsd Drilldown into Note in schema invoice_xsd Drilldown into Notes in schema invoice_xsd Drilldown into Description in schema invoice_xsd Drilldown into TaxWithholdingExempt in schema invoice_xsd Drilldown into PromisedShipDate in schema invoice_xsd Drilldown into PromisedDeliveryDate in schema invoice_xsd Drilldown into NeedDeliveryDate in schema invoice_xsd Drilldown into BackOrderedQuantity in schema invoice_xsd Drilldown into EarliestShipDate in schema invoice_xsd Drilldown into TotalAmount in schema invoice_xsd Drilldown into ExtendedPrice in schema invoice_xsd Drilldown into UnitPrice in schema invoice_xsd Drilldown into OrderQuantity in schema invoice_xsd Drilldown into OrderItem in schema invoice_xsd Drilldown into LineNumber in schema invoice_xsd Drilldown into DocumentLine in schema invoice_xsd Drilldown into OrderLineBase in schema invoice_xsdXSD Diagram of OrderSubLine in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="OrderSubLine">
    <xs:complexContent>
        <xs:extension base="OrderLineBase">
            <xs:sequence>
                <xs:element ref="UserArea" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsC:LineNumber 0 (1)
OrderItem nsC:OrderItem 0 (1)
OrderQuantity nsC:OrderQuantity 0 (1)
UnitPrice nsC:UnitPrice 0 (1)
ExtendedPrice nsC:ExtendedPrice 0 (1)
TotalAmount nsC:TotalAmount 0 (1)
EarliestShipDate nsC:EarliestShipDate 0 (1)
BackOrderedQuantity nsC:BackOrderedQuantity 0 (1)
NeedDeliveryDate nsC:NeedDeliveryDate 0 (1)
PromisedDeliveryDate nsC:PromisedDeliveryDate 0 (1)
PromisedShipDate nsC:PromisedShipDate 0 (1)
TaxWithholdingExempt nsC:TaxWithholdingExempt 0 (1)
Description nsC:Description 0 unbounded
Note nsC:Note 0 unbounded
SpecialHandlingNote nsC:SpecialHandlingNote 0 unbounded
ShippingNote nsC:ShippingNote 0 unbounded
ActualTemperature nsC:ActualTemperature 0 unbounded
LoadingTemperature nsC:LoadingTemperature 0 unbounded
DeliveryTemperature nsC:DeliveryTemperature 0 unbounded
MaximumTemperature nsC:MaximumTemperature 0 (1)
MinimumTemperature nsC:MinimumTemperature 0 (1)
License nsC:License 0 unbounded
FreightClass nsC:FreightClass 0 (1)
ShipNote nsC:ShipNote 0 unbounded
Priority nsC:Priority 0 (1)
ReasonCode nsC:ReasonCode 0 (1)
PackingMaterial nsC:PackingMaterial 0 (1)
DropShipInd nsC:DropShipInd 0 (1)
BackOrderedInd nsC:BackOrderedInd 0 (1)
ShipPriorToDueDateInd nsC:ShipPriorToDueDateInd 0 (1)
SubstitutionAllowedInd nsC:SubstitutionAllowedInd 0 (1)
Distribution nsC:Distribution 0 unbounded
TransportationTerm nsC:TransportationTerm 0 (1)
UserArea nsC:UserArea 0 (1)
<xs:group> nsC:Notes 0 (1)
<xs:group> nsC:Temperatures 0 (1)
Collapse Derivation Tree:
