Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: PositionHeader
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:StaffingPositionHeaderType
Containing Schema: HumanResource.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

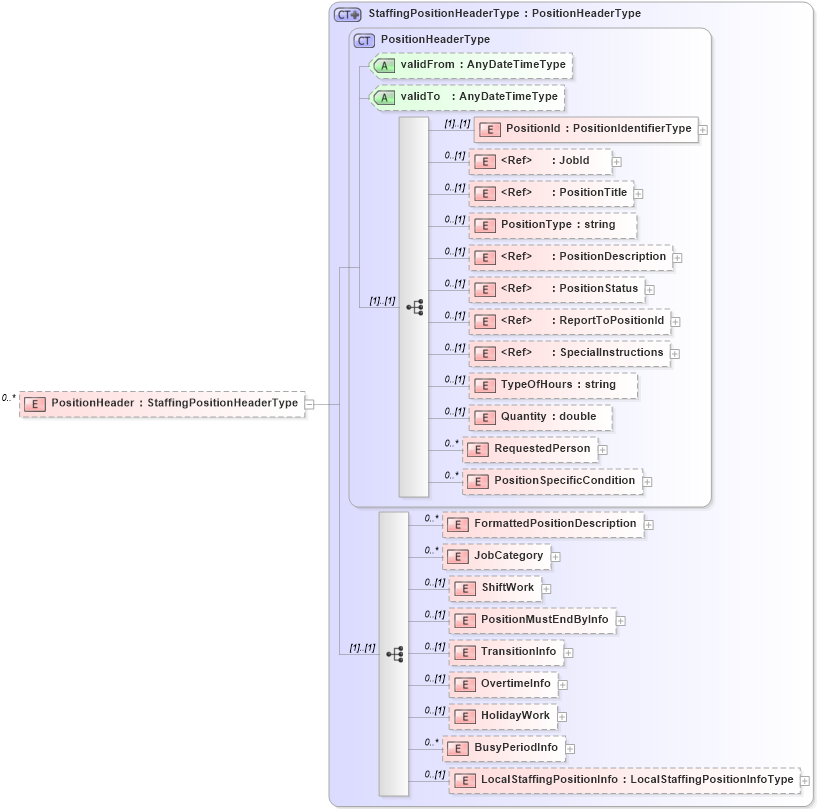

Collapse XSD Schema Diagram:
Drilldown into LocalStaffingPositionInfo in schema staffingpositionheader_xsd Drilldown into BusyPeriodInfo in schema staffingpositionheader_xsd Drilldown into HolidayWork in schema staffingpositionheader_xsd Drilldown into OvertimeInfo in schema staffingpositionheader_xsd Drilldown into TransitionInfo in schema staffingpositionheader_xsd Drilldown into PositionMustEndByInfo in schema staffingpositionheader_xsd Drilldown into ShiftWork in schema staffingpositionheader_xsd Drilldown into JobCategory in schema staffingpositionheader_xsd Drilldown into FormattedPositionDescription in schema staffingpositionheader_xsd Drilldown into PositionSpecificCondition in schema positionheader_xsd Drilldown into RequestedPerson in schema positionheader_xsd Drilldown into Quantity in schema positionheader_xsd Drilldown into TypeOfHours in schema positionheader_xsd Drilldown into SpecialInstructions in schema positionheader_xsd Drilldown into ReportToPositionId in schema positionheader_xsd Drilldown into PositionStatus in schema positionheader_xsd Drilldown into PositionDescription in schema positionheader_xsd Drilldown into PositionType in schema positionheader_xsd Drilldown into PositionTitle in schema positionheader_xsd Drilldown into JobId in schema positionheader_xsd Drilldown into PositionId in schema positionheader_xsd Drilldown into validTo in schema positionheader_xsd Drilldown into validFrom in schema positionheader_xsd Drilldown into PositionHeaderType in schema positionheader_xsd Drilldown into StaffingPositionHeaderType in schema staffingpositionheader_xsdXSD Diagram of PositionHeader in schema humanresource_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="PositionHeader" type="StaffingPositionHeaderType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PositionId hr:PositionId (1) (1)
JobId hr:JobId 0 (1)
PositionTitle hr:PositionTitle 0 (1)
PositionType hr:PositionType 0 (1)
PositionDescription hr:PositionDescription 0 (1)
PositionStatus hr:PositionStatus 0 (1)
ReportToPositionId hr:ReportToPositionId 0 (1)
SpecialInstructions hr:SpecialInstructions 0 (1)
TypeOfHours hr:TypeOfHours 0 (1)
Quantity hr:Quantity 0 (1)
RequestedPerson hr:RequestedPerson 0 unbounded
PositionSpecificCondition hr:PositionSpecificCondition 0 unbounded
FormattedPositionDescription hr:FormattedPositionDescription 0 unbounded
JobCategory hr:JobCategory 0 unbounded
ShiftWork hr:ShiftWork 0 (1)
PositionMustEndByInfo hr:PositionMustEndByInfo 0 (1)
TransitionInfo hr:TransitionInfo 0 (1)
OvertimeInfo hr:OvertimeInfo 0 (1)
HolidayWork hr:HolidayWork 0 (1)
BusyPeriodInfo hr:BusyPeriodInfo 0 unbounded
LocalStaffingPositionInfo hr:LocalStaffingPositionInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom hr:validFrom (Optional)
validTo hr:validTo (Optional)
Collapse Derivation Tree:
