Definition Type: ComplexType
Name: ScreeningPostalAddressType
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:PostalAddressType
Containing Schema: ScreeningTypes.xsd
Abstract

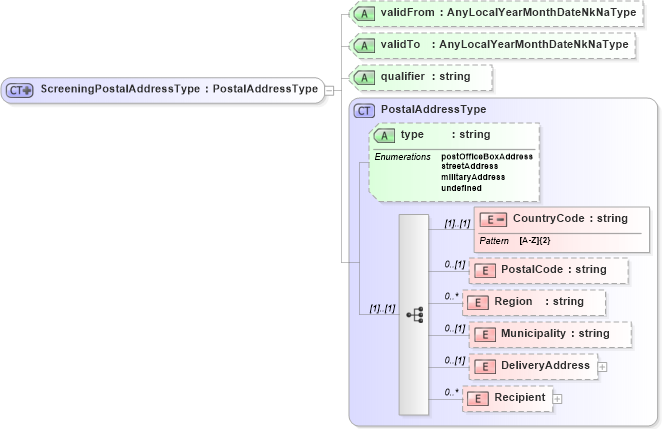

Collapse XSD Schema Diagram:
Drilldown into Recipient in schema postaladdress_xsd Drilldown into DeliveryAddress in schema postaladdress_xsd Drilldown into Municipality in schema postaladdress_xsd Drilldown into Region in schema postaladdress_xsd Drilldown into PostalCode in schema postaladdress_xsd Drilldown into CountryCode in schema postaladdress_xsd Drilldown into type in schema postaladdress_xsd Drilldown into PostalAddressType in schema postaladdress_xsd Drilldown into qualifier in schema screeningtypes_xsd Drilldown into validTo in schema screeningtypes_xsd Drilldown into validFrom in schema screeningtypes_xsdXSD Diagram of ScreeningPostalAddressType in schema screeningtypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ScreeningPostalAddressType">
    <xsd:complexContent>
        <xsd:extension base="PostalAddressType">
            <xsd:attribute name="validFrom" type="AnyLocalYearMonthDateNkNaType" use="optional" />
            <xsd:attribute name="validTo" type="AnyLocalYearMonthDateNkNaType" use="optional" />
            <xsd:attribute name="qualifier" type="xsd:string" use="optional" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CountryCode hr:CountryCode (1) (1)
PostalCode hr:PostalCode 0 (1)
Region hr:Region 0 unbounded
Municipality hr:Municipality 0 (1)
DeliveryAddress hr:DeliveryAddress 0 (1)
Recipient hr:Recipient 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type hr:type (Optional)
validFrom hr:validFrom Optional
validTo hr:validTo Optional
qualifier hr:qualifier Optional
Collapse Derivation Tree:
Collapse References:
hr:PostalAddress
