Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: SignedBy
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:PersonNameType
Containing Schema: FRLocalizations.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

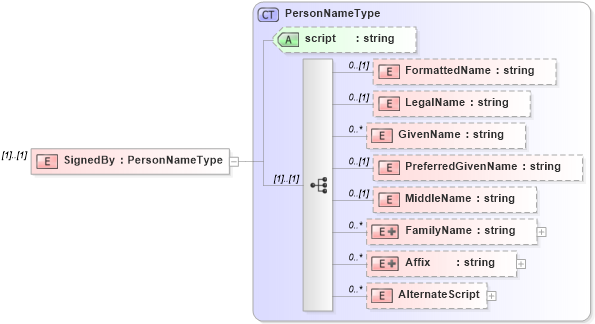

Collapse XSD Schema Diagram:
Drilldown into AlternateScript in schema personname_xsd Drilldown into Affix in schema personname_xsd Drilldown into FamilyName in schema personname_xsd Drilldown into MiddleName in schema personname_xsd Drilldown into PreferredGivenName in schema personname_xsd Drilldown into GivenName in schema personname_xsd Drilldown into LegalName in schema personname_xsd Drilldown into FormattedName in schema personname_xsd Drilldown into script in schema personname_xsd Drilldown into PersonNameType in schema personname_xsdXSD Diagram of SignedBy in schema frlocalizations_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SignedBy" type="PersonNameType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormattedName hr:FormattedName 0 (1)
LegalName hr:LegalName 0 (1)
GivenName hr:GivenName 0 unbounded
PreferredGivenName hr:PreferredGivenName 0 (1)
MiddleName hr:MiddleName 0 (1)
FamilyName hr:FamilyName 0 unbounded
Affix hr:Affix 0 unbounded
AlternateScript hr:AlternateScript 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
script hr:script (Optional)
Collapse Derivation Tree:
