Definition Type: Element
Name: StaffingOrder
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:StaffingOrderType
Containing Schema: StaffingOrder.xsd
Abstract

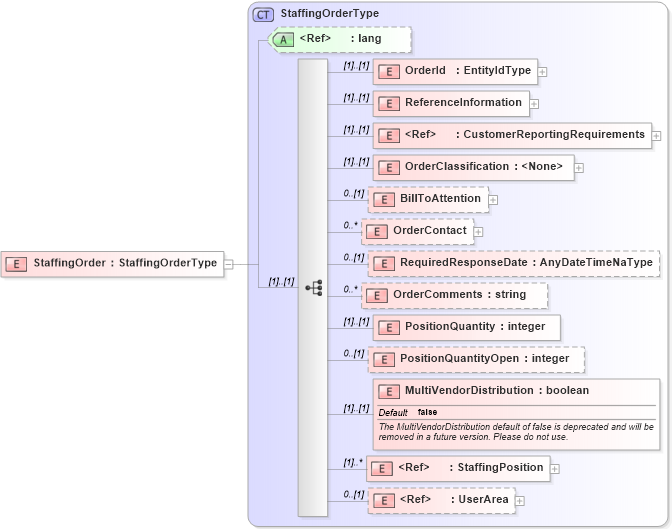

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into StaffingPosition in schema staffingposition_xsd Drilldown into MultiVendorDistribution in schema staffingorder_xsd Drilldown into PositionQuantityOpen in schema staffingorder_xsd Drilldown into PositionQuantity in schema staffingorder_xsd Drilldown into OrderComments in schema staffingorder_xsd Drilldown into RequiredResponseDate in schema staffingorder_xsd Drilldown into OrderContact in schema staffingorder_xsd Drilldown into BillToAttention in schema staffingorder_xsd Drilldown into OrderClassification in schema staffingorder_xsd Drilldown into CustomerReportingRequirements in schema customerreportingrequirements_xsd Drilldown into ReferenceInformation in schema staffingorder_xsd Drilldown into OrderId in schema staffingorder_xsd Drilldown into lang in schema xml_xsd Drilldown into StaffingOrderType in schema staffingorder_xsdXSD Diagram of StaffingOrder in schema staffingorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StaffingOrder" type="StaffingOrderType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OrderId hr:OrderId (1) (1)
ReferenceInformation hr:ReferenceInformation (1) (1)
CustomerReportingRequirements hr:CustomerReportingRequirements (1) (1)
OrderClassification hr:OrderClassification (1) (1)
BillToAttention hr:BillToAttention 0 (1)
OrderContact hr:OrderContact 0 unbounded
RequiredResponseDate hr:RequiredResponseDate 0 (1)
OrderComments hr:OrderComments 0 unbounded
PositionQuantity hr:PositionQuantity (1) (1)
PositionQuantityOpen hr:PositionQuantityOpen 0 (1)
MultiVendorDistribution hr:MultiVendorDistribution (1) (1)
StaffingPosition hr:StaffingPosition (1) unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
