Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StaffingPosition
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:StaffingPositionType
Containing Schema: StaffingPosition.xsd
Abstract

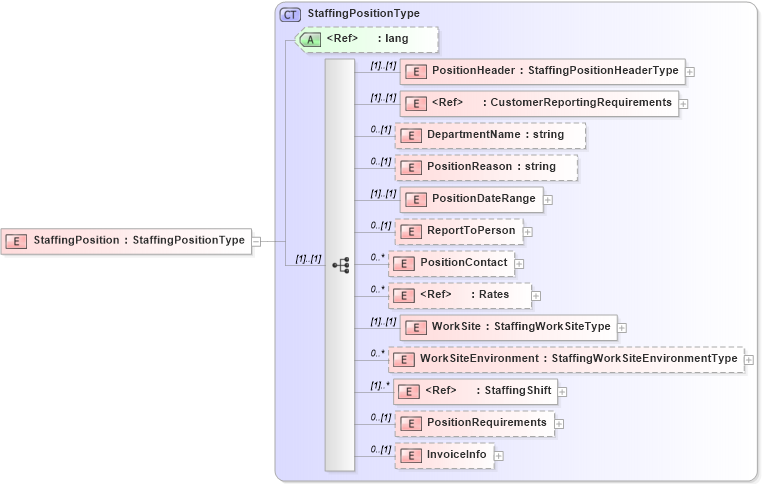

Collapse XSD Schema Diagram:
Drilldown into InvoiceInfo in schema staffingposition_xsd Drilldown into PositionRequirements in schema staffingposition_xsd Drilldown into StaffingShift in schema staffingshift_xsd Drilldown into WorkSiteEnvironment in schema staffingposition_xsd Drilldown into WorkSite in schema staffingposition_xsd Drilldown into Rates in schema rates_xsd Drilldown into PositionContact in schema staffingposition_xsd Drilldown into ReportToPerson in schema staffingposition_xsd Drilldown into PositionDateRange in schema staffingposition_xsd Drilldown into PositionReason in schema staffingposition_xsd Drilldown into DepartmentName in schema staffingposition_xsd Drilldown into CustomerReportingRequirements in schema customerreportingrequirements_xsd Drilldown into PositionHeader in schema staffingposition_xsd Drilldown into lang in schema xml_xsd Drilldown into StaffingPositionType in schema staffingposition_xsdXSD Diagram of StaffingPosition in schema staffingposition_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StaffingPosition" type="StaffingPositionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PositionHeader hr:PositionHeader (1) (1)
CustomerReportingRequirements hr:CustomerReportingRequirements (1) (1)
DepartmentName hr:DepartmentName 0 (1)
PositionReason hr:PositionReason 0 (1)
PositionDateRange hr:PositionDateRange (1) (1)
ReportToPerson hr:ReportToPerson 0 (1)
PositionContact hr:PositionContact 0 unbounded
Rates hr:Rates 0 unbounded
WorkSite hr:WorkSite (1) (1)
WorkSiteEnvironment hr:WorkSiteEnvironment 0 unbounded
StaffingShift hr:StaffingShift (1) unbounded
PositionRequirements hr:PositionRequirements 0 (1)
InvoiceInfo hr:InvoiceInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
