Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: SupportingMaterials
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:SupportingMaterialsType
Containing Schema: SupportingMaterials.xsd
Abstract
Documentation:
Supporting materials are commonly passed with HR transactions. Examples may include a picture associated with a resume, a copy of a driver's license sent as part of a background check, proof of good health sent with a life insurance enrollment, a copy of diploma or license, or a copy of a pay stub. Supporting materials may also include visual/audio media and binary data.

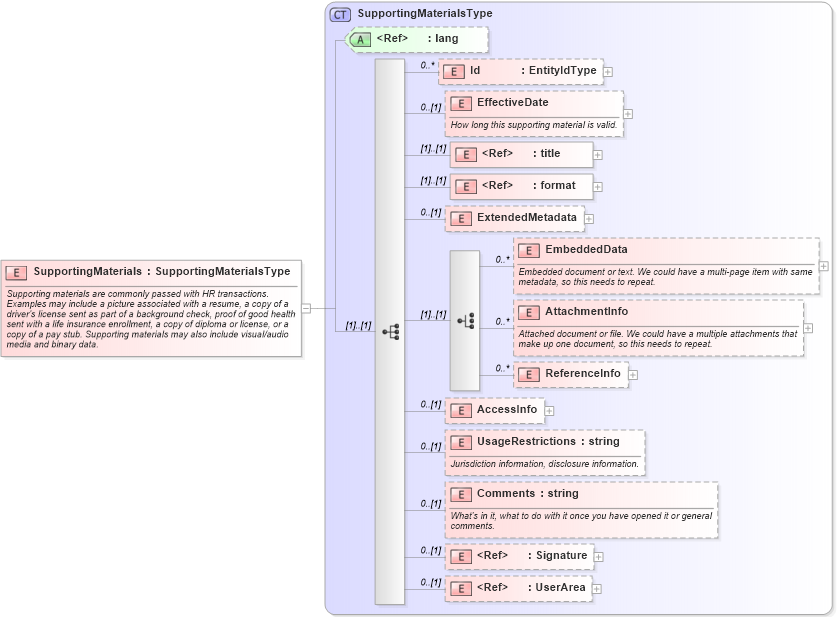

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd2 Drilldown into Comments in schema supportingmaterials_xsd Drilldown into UsageRestrictions in schema supportingmaterials_xsd Drilldown into AccessInfo in schema supportingmaterials_xsd Drilldown into ReferenceInfo in schema supportingmaterials_xsd Drilldown into AttachmentInfo in schema supportingmaterials_xsd Drilldown into EmbeddedData in schema supportingmaterials_xsd Drilldown into ExtendedMetadata in schema supportingmaterials_xsd Drilldown into format in schema simpledc20021212_xsd Drilldown into title in schema simpledc20021212_xsd Drilldown into EffectiveDate in schema supportingmaterials_xsd Drilldown into Id in schema supportingmaterials_xsd Drilldown into lang in schema xml_xsd Drilldown into SupportingMaterialsType in schema supportingmaterials_xsdXSD Diagram of SupportingMaterials in schema supportingmaterials_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="SupportingMaterials" type="SupportingMaterialsType">
    <xsd:annotation>
        <xsd:documentation>Supporting materials are commonly passed with HR transactions. Examples may include a picture associated with a resume, a copy of a driver's license sent as part of a background check, proof of good health sent with a life insurance enrollment, a copy of diploma or license, or a copy of a pay stub. Supporting materials may also include visual/audio media and binary data.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id 0 unbounded
EffectiveDate hr:EffectiveDate 0 (1)
title dc:title (1) (1)
format dc:format (1) (1)
ExtendedMetadata hr:ExtendedMetadata 0 (1)
EmbeddedData hr:EmbeddedData 0 unbounded
AttachmentInfo hr:AttachmentInfo 0 unbounded
ReferenceInfo hr:ReferenceInfo 0 unbounded
AccessInfo hr:AccessInfo 0 (1)
UsageRestrictions hr:UsageRestrictions 0 (1)
Comments hr:Comments 0 (1)
Signature ds:Signature 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang Optional
Collapse Derivation Tree:
