Definition Type: ComplexType
Name: TelcomNumberType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: TelcomNumber.xsd
Abstract

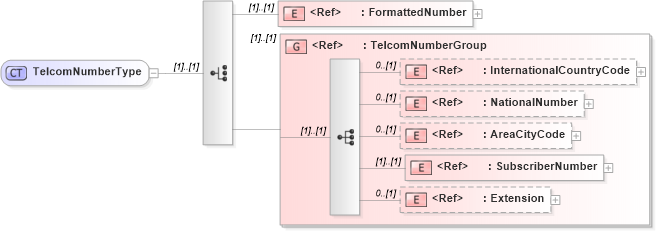

Collapse XSD Schema Diagram:
Drilldown into Extension in schema telcomnumber_xsd Drilldown into SubscriberNumber in schema telcomnumber_xsd Drilldown into AreaCityCode in schema telcomnumber_xsd Drilldown into NationalNumber in schema telcomnumber_xsd Drilldown into InternationalCountryCode in schema telcomnumber_xsd Drilldown into TelcomNumberGroup in schema telcomnumber_xsd Drilldown into FormattedNumber in schema telcomnumber_xsdXSD Diagram of TelcomNumberType in schema telcomnumber_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="TelcomNumberType">
    <xsd:choice>
        <xsd:element ref="FormattedNumber" />
        <xsd:group ref="TelcomNumberGroup" />
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormattedNumber hr:FormattedNumber (1) (1)
InternationalCountryCode hr:InternationalCountryCode 0 (1)
NationalNumber hr:NationalNumber 0 (1)
AreaCityCode hr:AreaCityCode 0 (1)
SubscriberNumber hr:SubscriberNumber (1) (1)
Extension hr:Extension 0 (1)
<xs:group> hr:TelcomNumberGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
hr:Fax, hr:MobileTelcomNumberType, hr:Pager, hr:Telephone, hr:Telephonehr:TTYTDD,
