Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: abstractPeriodicalStatementDataType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract True

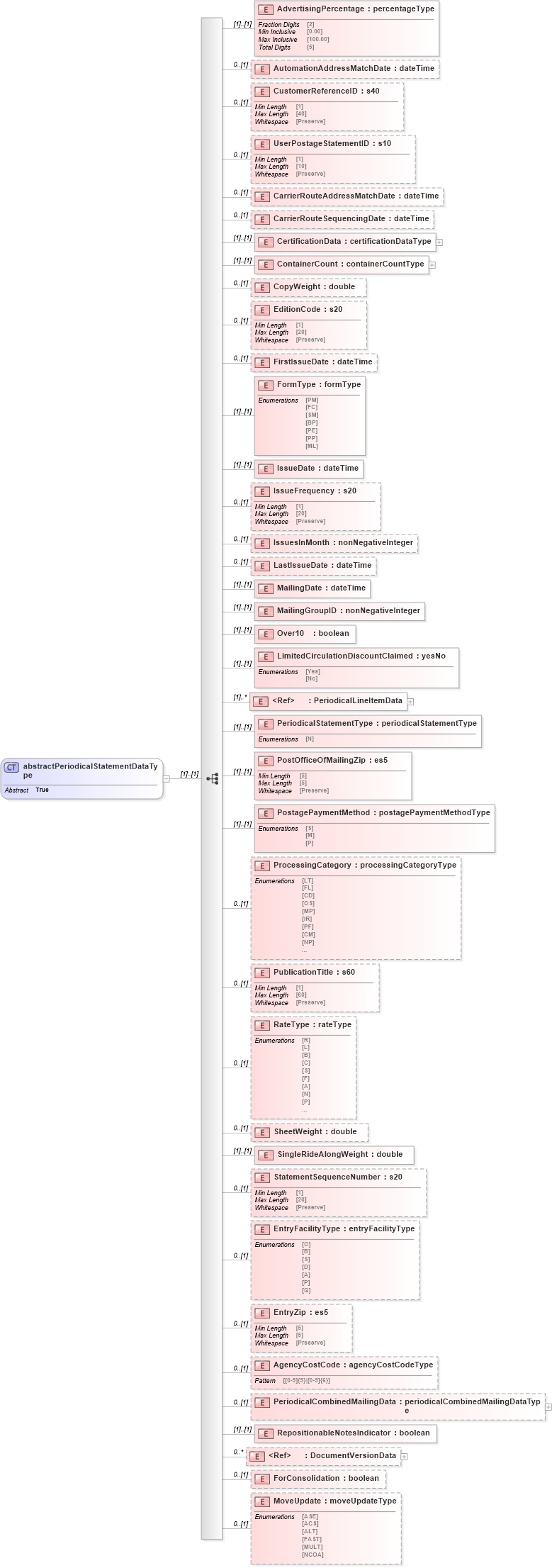

Collapse XSD Schema Diagram:
Drilldown into MoveUpdate in schema mailxml_120308_xsd Drilldown into ForConsolidation in schema mailxml_120308_xsd Drilldown into DocumentVersionData in schema mailxml_120308_xsd Drilldown into RepositionableNotesIndicator in schema mailxml_120308_xsd Drilldown into PeriodicalCombinedMailingData in schema mailxml_120308_xsd Drilldown into AgencyCostCode in schema mailxml_120308_xsd Drilldown into EntryZip in schema mailxml_120308_xsd Drilldown into EntryFacilityType in schema mailxml_120308_xsd Drilldown into StatementSequenceNumber in schema mailxml_120308_xsd Drilldown into SingleRideAlongWeight in schema mailxml_120308_xsd Drilldown into SheetWeight in schema mailxml_120308_xsd Drilldown into RateType in schema mailxml_120308_xsd Drilldown into PublicationTitle in schema mailxml_120308_xsd Drilldown into ProcessingCategory in schema mailxml_120308_xsd Drilldown into PostagePaymentMethod in schema mailxml_120308_xsd Drilldown into PostOfficeOfMailingZip in schema mailxml_120308_xsd Drilldown into PeriodicalStatementType in schema mailxml_120308_xsd Drilldown into PeriodicalLineItemData in schema mailxml_120308_xsd Drilldown into LimitedCirculationDiscountClaimed in schema mailxml_120308_xsd Drilldown into Over10 in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into MailingDate in schema mailxml_120308_xsd Drilldown into LastIssueDate in schema mailxml_120308_xsd Drilldown into IssuesInMonth in schema mailxml_120308_xsd Drilldown into IssueFrequency in schema mailxml_120308_xsd Drilldown into IssueDate in schema mailxml_120308_xsd Drilldown into FormType in schema mailxml_120308_xsd Drilldown into FirstIssueDate in schema mailxml_120308_xsd Drilldown into EditionCode in schema mailxml_120308_xsd Drilldown into CopyWeight in schema mailxml_120308_xsd Drilldown into ContainerCount in schema mailxml_120308_xsd Drilldown into CertificationData in schema mailxml_120308_xsd Drilldown into CarrierRouteSequencingDate in schema mailxml_120308_xsd Drilldown into CarrierRouteAddressMatchDate in schema mailxml_120308_xsd Drilldown into UserPostageStatementID in schema mailxml_120308_xsd Drilldown into CustomerReferenceID in schema mailxml_120308_xsd Drilldown into AutomationAddressMatchDate in schema mailxml_120308_xsd Drilldown into AdvertisingPercentage in schema mailxml_120308_xsdXSD Diagram of abstractPeriodicalStatementDataType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="abstractPeriodicalStatementDataType" abstract="true">
    <xs:sequence>
        <xs:element name="AdvertisingPercentage" type="mailxml_base:percentageType" />
        <xs:element name="AutomationAddressMatchDate" type="xs:dateTime" minOccurs="0" />
        <xs:element name="CustomerReferenceID" type="mailxml_base:s40" minOccurs="0" />
        <xs:element name="UserPostageStatementID" type="mailxml_base:s10" minOccurs="0" />
        <xs:element name="CarrierRouteAddressMatchDate" type="xs:dateTime" minOccurs="0" />
        <xs:element name="CarrierRouteSequencingDate" type="xs:dateTime" minOccurs="0" />
        <xs:element name="CertificationData" type="mailxml:certificationDataType" />
        <xs:element name="ContainerCount" type="mailxml:containerCountType" />
        <xs:element name="CopyWeight" type="xs:double" minOccurs="0" />
        <xs:element name="EditionCode" type="mailxml_base:s20" minOccurs="0" />
        <xs:element name="FirstIssueDate" type="xs:dateTime" minOccurs="0" />
        <xs:element name="FormType" type="mailxml_base:formType" />
        <xs:element name="IssueDate" type="xs:dateTime" />
        <xs:element name="IssueFrequency" type="mailxml_base:s20" minOccurs="0" />
        <xs:element name="IssuesInMonth" type="xs:nonNegativeInteger" minOccurs="0" />
        <xs:element name="LastIssueDate" type="xs:dateTime" minOccurs="0" />
        <xs:element name="MailingDate" type="xs:dateTime" />
        <xs:element name="MailingGroupID" type="xs:nonNegativeInteger" />
        <xs:element name="Over10" type="xs:boolean" />
        <xs:element name="LimitedCirculationDiscountClaimed" type="mailxml_base:yesNo" />
        <xs:element ref="mailxml:PeriodicalLineItemData" maxOccurs="unbounded" />
        <xs:element name="PeriodicalStatementType" type="mailxml_base:periodicalStatementType" />
        <xs:element name="PostOfficeOfMailingZip" type="mailxml_base:es5" />
        <xs:element name="PostagePaymentMethod" type="mailxml_base:postagePaymentMethodType" />
        <xs:element name="ProcessingCategory" type="mailxml_base:processingCategoryType" minOccurs="0" />
        <xs:element name="PublicationTitle" type="mailxml_base:s60" minOccurs="0" />
        <xs:element name="RateType" type="mailxml_base:rateType" minOccurs="0" />
        <xs:element name="SheetWeight" type="xs:double" minOccurs="0" />
        <xs:element name="SingleRideAlongWeight" type="xs:double" />
        <xs:element name="StatementSequenceNumber" type="mailxml_base:s20" minOccurs="0" />
        <xs:element name="EntryFacilityType" type="mailxml_base:entryFacilityType" minOccurs="0" />
        <xs:element name="EntryZip" type="mailxml_base:es5" minOccurs="0" />
        <xs:element name="AgencyCostCode" type="mailxml_base:agencyCostCodeType" minOccurs="0" />
        <xs:element name="PeriodicalCombinedMailingData" type="mailxml:periodicalCombinedMailingDataType" minOccurs="0" />
        <xs:element name="RepositionableNotesIndicator" type="xs:boolean" />
        <xs:element ref="mailxml:DocumentVersionData" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="ForConsolidation" type="xs:boolean" minOccurs="0" />
        <xs:element name="MoveUpdate" type="mailxml_base:moveUpdateType" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdvertisingPercentage mailxml:AdvertisingPercentage (1) (1)
AutomationAddressMatchDate mailxml:AutomationAddressMatchDate 0 (1)
CustomerReferenceID mailxml:CustomerReferenceID 0 (1)
UserPostageStatementID mailxml:UserPostageStatementID 0 (1)
CarrierRouteAddressMatchDate mailxml:CarrierRouteAddressMatchDate 0 (1)
CarrierRouteSequencingDate mailxml:CarrierRouteSequencingDate 0 (1)
CertificationData mailxml:CertificationData (1) (1)
ContainerCount mailxml:ContainerCount (1) (1)
CopyWeight mailxml:CopyWeight 0 (1)
EditionCode mailxml:EditionCode 0 (1)
FirstIssueDate mailxml:FirstIssueDate 0 (1)
FormType mailxml:FormType (1) (1)
IssueDate mailxml:IssueDate (1) (1)
IssueFrequency mailxml:IssueFrequency 0 (1)
IssuesInMonth mailxml:IssuesInMonth 0 (1)
LastIssueDate mailxml:LastIssueDate 0 (1)
MailingDate mailxml:MailingDate (1) (1)
MailingGroupID mailxml:MailingGroupID (1) (1)
Over10 mailxml:Over10 (1) (1)
LimitedCirculationDiscountClaimed mailxml:LimitedCirculationDiscountClaimed (1) (1)
PeriodicalLineItemData mailxml:PeriodicalLineItemData (1) unbounded
PeriodicalStatementType mailxml:PeriodicalStatementType (1) (1)
PostOfficeOfMailingZip mailxml:PostOfficeOfMailingZip (1) (1)
PostagePaymentMethod mailxml:PostagePaymentMethod (1) (1)
ProcessingCategory mailxml:ProcessingCategory 0 (1)
PublicationTitle mailxml:PublicationTitle 0 (1)
RateType mailxml:RateType 0 (1)
SheetWeight mailxml:SheetWeight 0 (1)
SingleRideAlongWeight mailxml:SingleRideAlongWeight (1) (1)
StatementSequenceNumber mailxml:StatementSequenceNumber 0 (1)
EntryFacilityType mailxml:EntryFacilityType 0 (1)
EntryZip mailxml:EntryZip 0 (1)
AgencyCostCode mailxml:AgencyCostCode 0 (1)
PeriodicalCombinedMailingData mailxml:PeriodicalCombinedMailingData 0 (1)
RepositionableNotesIndicator mailxml:RepositionableNotesIndicator (1) (1)
DocumentVersionData mailxml:DocumentVersionData 0 unbounded
ForConsolidation mailxml:ForConsolidation 0 (1)
MoveUpdate mailxml:MoveUpdate 0 (1)
Collapse Derivation Tree:
Collapse References:
mailxml:createPeriodicalStatementType, mailxml:periodicalStatementDataType
