Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: periodicalStatementDataType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:abstractPeriodicalStatementDataType
Containing Schema: mailxml_120308.xsd
Abstract

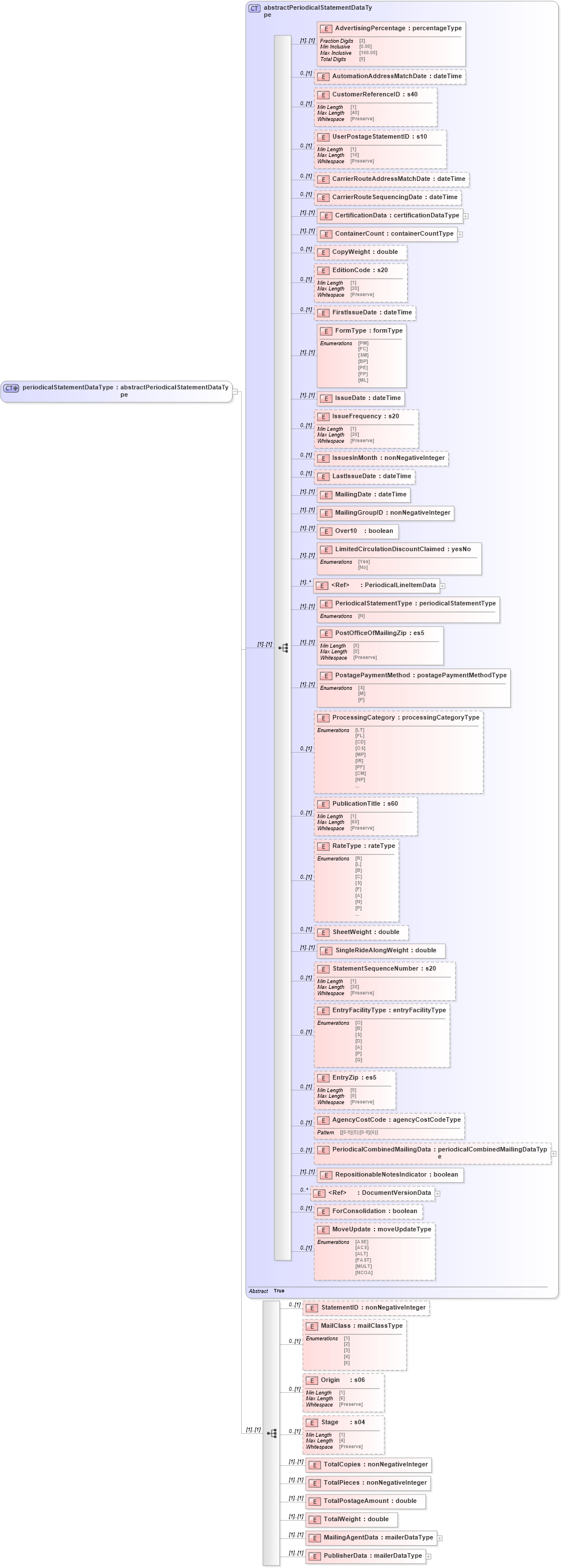

Collapse XSD Schema Diagram:
Drilldown into PublisherData in schema mailxml_120308_xsd Drilldown into MailingAgentData in schema mailxml_120308_xsd Drilldown into TotalWeight in schema mailxml_120308_xsd Drilldown into TotalPostageAmount in schema mailxml_120308_xsd Drilldown into TotalPieces in schema mailxml_120308_xsd Drilldown into TotalCopies in schema mailxml_120308_xsd Drilldown into Stage in schema mailxml_120308_xsd Drilldown into Origin in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsd Drilldown into StatementID in schema mailxml_120308_xsd Drilldown into MoveUpdate in schema mailxml_120308_xsd Drilldown into ForConsolidation in schema mailxml_120308_xsd Drilldown into DocumentVersionData in schema mailxml_120308_xsd Drilldown into RepositionableNotesIndicator in schema mailxml_120308_xsd Drilldown into PeriodicalCombinedMailingData in schema mailxml_120308_xsd Drilldown into AgencyCostCode in schema mailxml_120308_xsd Drilldown into EntryZip in schema mailxml_120308_xsd Drilldown into EntryFacilityType in schema mailxml_120308_xsd Drilldown into StatementSequenceNumber in schema mailxml_120308_xsd Drilldown into SingleRideAlongWeight in schema mailxml_120308_xsd Drilldown into SheetWeight in schema mailxml_120308_xsd Drilldown into RateType in schema mailxml_120308_xsd Drilldown into PublicationTitle in schema mailxml_120308_xsd Drilldown into ProcessingCategory in schema mailxml_120308_xsd Drilldown into PostagePaymentMethod in schema mailxml_120308_xsd Drilldown into PostOfficeOfMailingZip in schema mailxml_120308_xsd Drilldown into PeriodicalStatementType in schema mailxml_120308_xsd Drilldown into PeriodicalLineItemData in schema mailxml_120308_xsd Drilldown into LimitedCirculationDiscountClaimed in schema mailxml_120308_xsd Drilldown into Over10 in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into MailingDate in schema mailxml_120308_xsd Drilldown into LastIssueDate in schema mailxml_120308_xsd Drilldown into IssuesInMonth in schema mailxml_120308_xsd Drilldown into IssueFrequency in schema mailxml_120308_xsd Drilldown into IssueDate in schema mailxml_120308_xsd Drilldown into FormType in schema mailxml_120308_xsd Drilldown into FirstIssueDate in schema mailxml_120308_xsd Drilldown into EditionCode in schema mailxml_120308_xsd Drilldown into CopyWeight in schema mailxml_120308_xsd Drilldown into ContainerCount in schema mailxml_120308_xsd Drilldown into CertificationData in schema mailxml_120308_xsd Drilldown into CarrierRouteSequencingDate in schema mailxml_120308_xsd Drilldown into CarrierRouteAddressMatchDate in schema mailxml_120308_xsd Drilldown into UserPostageStatementID in schema mailxml_120308_xsd Drilldown into CustomerReferenceID in schema mailxml_120308_xsd Drilldown into AutomationAddressMatchDate in schema mailxml_120308_xsd Drilldown into AdvertisingPercentage in schema mailxml_120308_xsd Drilldown into abstractPeriodicalStatementDataType in schema mailxml_120308_xsdXSD Diagram of periodicalStatementDataType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="periodicalStatementDataType">
    <xs:complexContent>
        <xs:extension base="mailxml:abstractPeriodicalStatementDataType">
            <xs:sequence>
                <xs:element name="StatementID" type="xs:nonNegativeInteger" minOccurs="0" />
                <xs:element name="MailClass" type="mailxml_base:mailClassType" minOccurs="0" />
                <xs:element name="Origin" type="mailxml_base:s06" minOccurs="0" />
                <xs:element name="Stage" type="mailxml_base:s04" minOccurs="0" />
                <xs:element name="TotalCopies" type="xs:nonNegativeInteger" />
                <xs:element name="TotalPieces" type="xs:nonNegativeInteger" />
                <xs:element name="TotalPostageAmount" type="xs:double" />
                <xs:element name="TotalWeight" type="xs:double" />
                <xs:element name="MailingAgentData" type="mailxml:mailerDataType" />
                <xs:element name="PublisherData" type="mailxml:mailerDataType" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdvertisingPercentage mailxml:AdvertisingPercentage (1) (1)
AutomationAddressMatchDate mailxml:AutomationAddressMatchDate 0 (1)
CustomerReferenceID mailxml:CustomerReferenceID 0 (1)
UserPostageStatementID mailxml:UserPostageStatementID 0 (1)
CarrierRouteAddressMatchDate mailxml:CarrierRouteAddressMatchDate 0 (1)
CarrierRouteSequencingDate mailxml:CarrierRouteSequencingDate 0 (1)
CertificationData mailxml:CertificationData (1) (1)
ContainerCount mailxml:ContainerCount (1) (1)
CopyWeight mailxml:CopyWeight 0 (1)
EditionCode mailxml:EditionCode 0 (1)
FirstIssueDate mailxml:FirstIssueDate 0 (1)
FormType mailxml:FormType (1) (1)
IssueDate mailxml:IssueDate (1) (1)
IssueFrequency mailxml:IssueFrequency 0 (1)
IssuesInMonth mailxml:IssuesInMonth 0 (1)
LastIssueDate mailxml:LastIssueDate 0 (1)
MailingDate mailxml:MailingDate (1) (1)
MailingGroupID mailxml:MailingGroupID (1) (1)
Over10 mailxml:Over10 (1) (1)
LimitedCirculationDiscountClaimed mailxml:LimitedCirculationDiscountClaimed (1) (1)
PeriodicalLineItemData mailxml:PeriodicalLineItemData (1) unbounded
PeriodicalStatementType mailxml:PeriodicalStatementType (1) (1)
PostOfficeOfMailingZip mailxml:PostOfficeOfMailingZip (1) (1)
PostagePaymentMethod mailxml:PostagePaymentMethod (1) (1)
ProcessingCategory mailxml:ProcessingCategory 0 (1)
PublicationTitle mailxml:PublicationTitle 0 (1)
RateType mailxml:RateType 0 (1)
SheetWeight mailxml:SheetWeight 0 (1)
SingleRideAlongWeight mailxml:SingleRideAlongWeight (1) (1)
StatementSequenceNumber mailxml:StatementSequenceNumber 0 (1)
EntryFacilityType mailxml:EntryFacilityType 0 (1)
EntryZip mailxml:EntryZip 0 (1)
AgencyCostCode mailxml:AgencyCostCode 0 (1)
PeriodicalCombinedMailingData mailxml:PeriodicalCombinedMailingData 0 (1)
RepositionableNotesIndicator mailxml:RepositionableNotesIndicator (1) (1)
DocumentVersionData mailxml:DocumentVersionData 0 unbounded
ForConsolidation mailxml:ForConsolidation 0 (1)
MoveUpdate mailxml:MoveUpdate 0 (1)
StatementID mailxml:StatementID 0 (1)
MailClass mailxml:MailClass 0 (1)
Origin mailxml:Origin 0 (1)
Stage mailxml:Stage 0 (1)
TotalCopies mailxml:TotalCopies (1) (1)
TotalPieces mailxml:TotalPieces (1) (1)
TotalPostageAmount mailxml:TotalPostageAmount (1) (1)
TotalWeight mailxml:TotalWeight (1) (1)
MailingAgentData mailxml:MailingAgentData (1) (1)
PublisherData mailxml:PublisherData (1) (1)
Collapse Derivation Tree:
Collapse References:
mailxml:PeriodicalStatementData
