Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: Address
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:addressType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

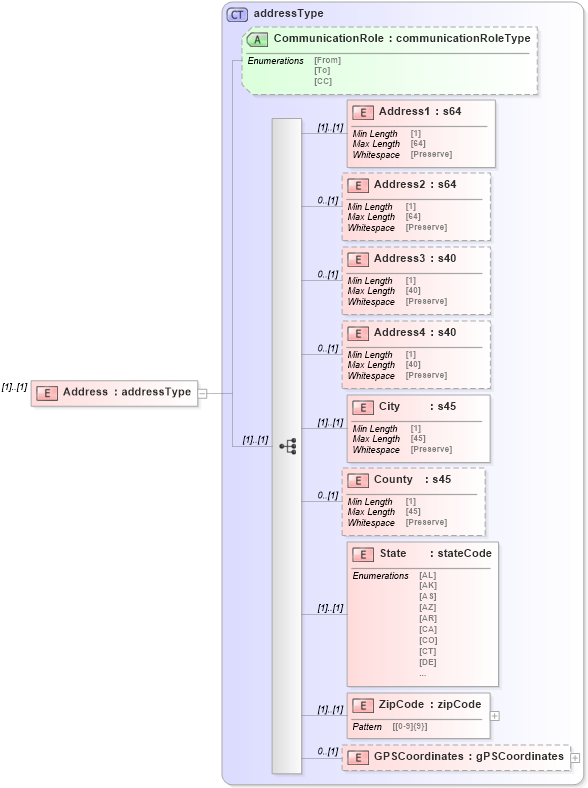

Collapse XSD Schema Diagram:
Drilldown into GPSCoordinates in schema mailxml_120308_xsd Drilldown into ZipCode in schema mailxml_120308_xsd Drilldown into State in schema mailxml_120308_xsd Drilldown into County in schema mailxml_120308_xsd Drilldown into City in schema mailxml_120308_xsd Drilldown into Address4 in schema mailxml_120308_xsd Drilldown into Address3 in schema mailxml_120308_xsd Drilldown into Address2 in schema mailxml_120308_xsd Drilldown into Address1 in schema mailxml_120308_xsd Drilldown into CommunicationRole in schema mailxml_120308_xsd Drilldown into addressType in schema mailxml_120308_xsdXSD Diagram of Address in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="Address" type="mailxml:addressType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Address1 mailxml:Address1 (1) (1)
Address2 mailxml:Address2 0 (1)
Address3 mailxml:Address3 0 (1)
Address4 mailxml:Address4 0 (1)
City mailxml:City (1) (1)
County mailxml:County 0 (1)
State mailxml:State (1) (1)
ZipCode mailxml:ZipCode (1) (1)
GPSCoordinates mailxml:GPSCoordinates 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CommunicationRole mailxml:CommunicationRole (Optional)
Collapse Derivation Tree:
