Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: addressType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

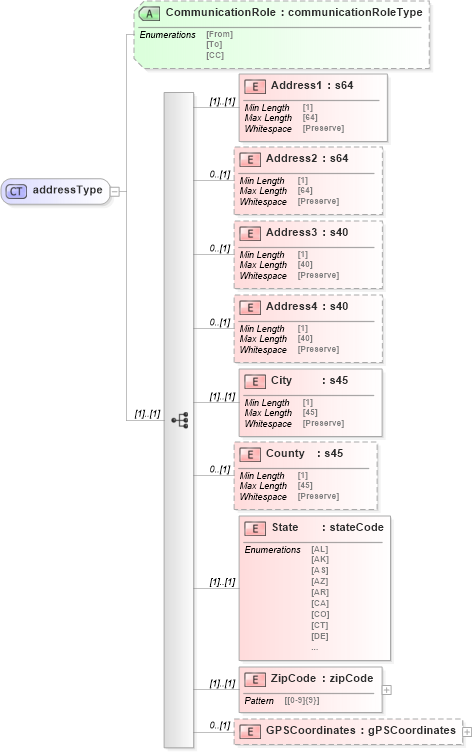

Collapse XSD Schema Diagram:
Drilldown into GPSCoordinates in schema mailxml_120308_xsd Drilldown into ZipCode in schema mailxml_120308_xsd Drilldown into State in schema mailxml_120308_xsd Drilldown into County in schema mailxml_120308_xsd Drilldown into City in schema mailxml_120308_xsd Drilldown into Address4 in schema mailxml_120308_xsd Drilldown into Address3 in schema mailxml_120308_xsd Drilldown into Address2 in schema mailxml_120308_xsd Drilldown into Address1 in schema mailxml_120308_xsd Drilldown into CommunicationRole in schema mailxml_120308_xsdXSD Diagram of addressType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="addressType">
    <xs:sequence>
        <xs:element name="Address1" type="mailxml_base:s64" />
        <xs:element name="Address2" type="mailxml_base:s64" minOccurs="0" />
        <xs:element name="Address3" type="mailxml_base:s40" minOccurs="0" />
        <xs:element name="Address4" type="mailxml_base:s40" minOccurs="0" />
        <xs:element name="City" type="mailxml_base:s45" />
        <xs:element name="County" type="mailxml_base:s45" minOccurs="0" />
        <xs:element name="State" type="mailxml_base:stateCode" />
        <xs:element name="ZipCode" type="mailxml:zipCode" />
        <xs:element name="GPSCoordinates" type="mailxml:gPSCoordinates" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="CommunicationRole" type="mailxml_base:communicationRoleType" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Address1 mailxml:Address1 (1) (1)
Address2 mailxml:Address2 0 (1)
Address3 mailxml:Address3 0 (1)
Address4 mailxml:Address4 0 (1)
City mailxml:City (1) (1)
County mailxml:County 0 (1)
State mailxml:State (1) (1)
ZipCode mailxml:ZipCode (1) (1)
GPSCoordinates mailxml:GPSCoordinates 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CommunicationRole mailxml:CommunicationRole (Optional)
Collapse Derivation Tree:
Collapse References:
mailxml:Address, mailxml:Address, mailxml:Addressmailxml:CarrierAddress, mailxml:FacilityAddress, mailxml:FacilityAddress,
