Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: apptBlockUnscheduledGoodsType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

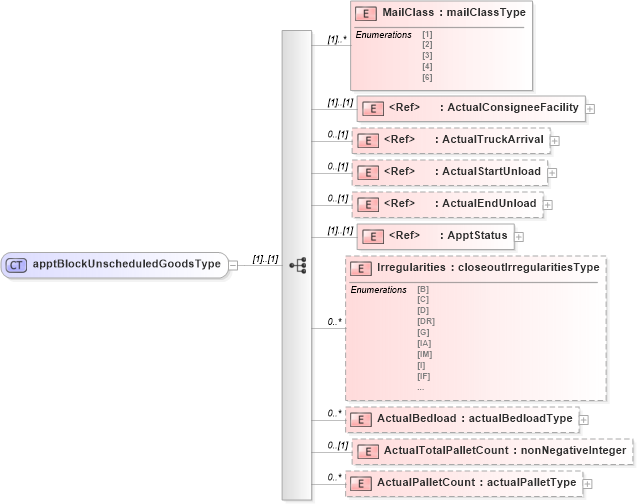

Collapse XSD Schema Diagram:
Drilldown into ActualPalletCount in schema mailxml_120308_xsd Drilldown into ActualTotalPalletCount in schema mailxml_120308_xsd Drilldown into ActualBedload in schema mailxml_120308_xsd Drilldown into Irregularities in schema mailxml_120308_xsd Drilldown into ApptStatus in schema mailxml_120308_xsd Drilldown into ActualEndUnload in schema mailxml_120308_xsd Drilldown into ActualStartUnload in schema mailxml_120308_xsd Drilldown into ActualTruckArrival in schema mailxml_120308_xsd Drilldown into ActualConsigneeFacility in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsdXSD Diagram of apptBlockUnscheduledGoodsType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="apptBlockUnscheduledGoodsType">
    <xs:sequence>
        <xs:element name="MailClass" type="mailxml_base:mailClassType" maxOccurs="unbounded" />
        <xs:element ref="mailxml:ActualConsigneeFacility" />
        <xs:element ref="mailxml:ActualTruckArrival" minOccurs="0" />
        <xs:element ref="mailxml:ActualStartUnload" minOccurs="0" />
        <xs:element ref="mailxml:ActualEndUnload" minOccurs="0" />
        <xs:element ref="mailxml:ApptStatus" />
        <xs:element name="Irregularities" type="mailxml_base:closeoutIrregularitiesType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="ActualBedload" type="mailxml:actualBedloadType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="ActualTotalPalletCount" type="xs:nonNegativeInteger" minOccurs="0" />
        <xs:element name="ActualPalletCount" type="mailxml:actualPalletType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailClass mailxml:MailClass (1) unbounded
ActualConsigneeFacility mailxml:ActualConsigneeFacility (1) (1)
ActualTruckArrival mailxml:ActualTruckArrival 0 (1)
ActualStartUnload mailxml:ActualStartUnload 0 (1)
ActualEndUnload mailxml:ActualEndUnload 0 (1)
ApptStatus mailxml:ApptStatus (1) (1)
Irregularities mailxml:Irregularities 0 unbounded
ActualBedload mailxml:ActualBedload 0 unbounded
ActualTotalPalletCount mailxml:ActualTotalPalletCount 0 (1)
ActualPalletCount mailxml:ActualPalletCount 0 unbounded
Collapse Derivation Tree:
Collapse References:
mailxml:ApptBlockUnscheduledGoodsReceipt, mailxml:ApptBlockUnscheduledGoodsReceipt
