Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: BundleDetail
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:bundleDetailType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

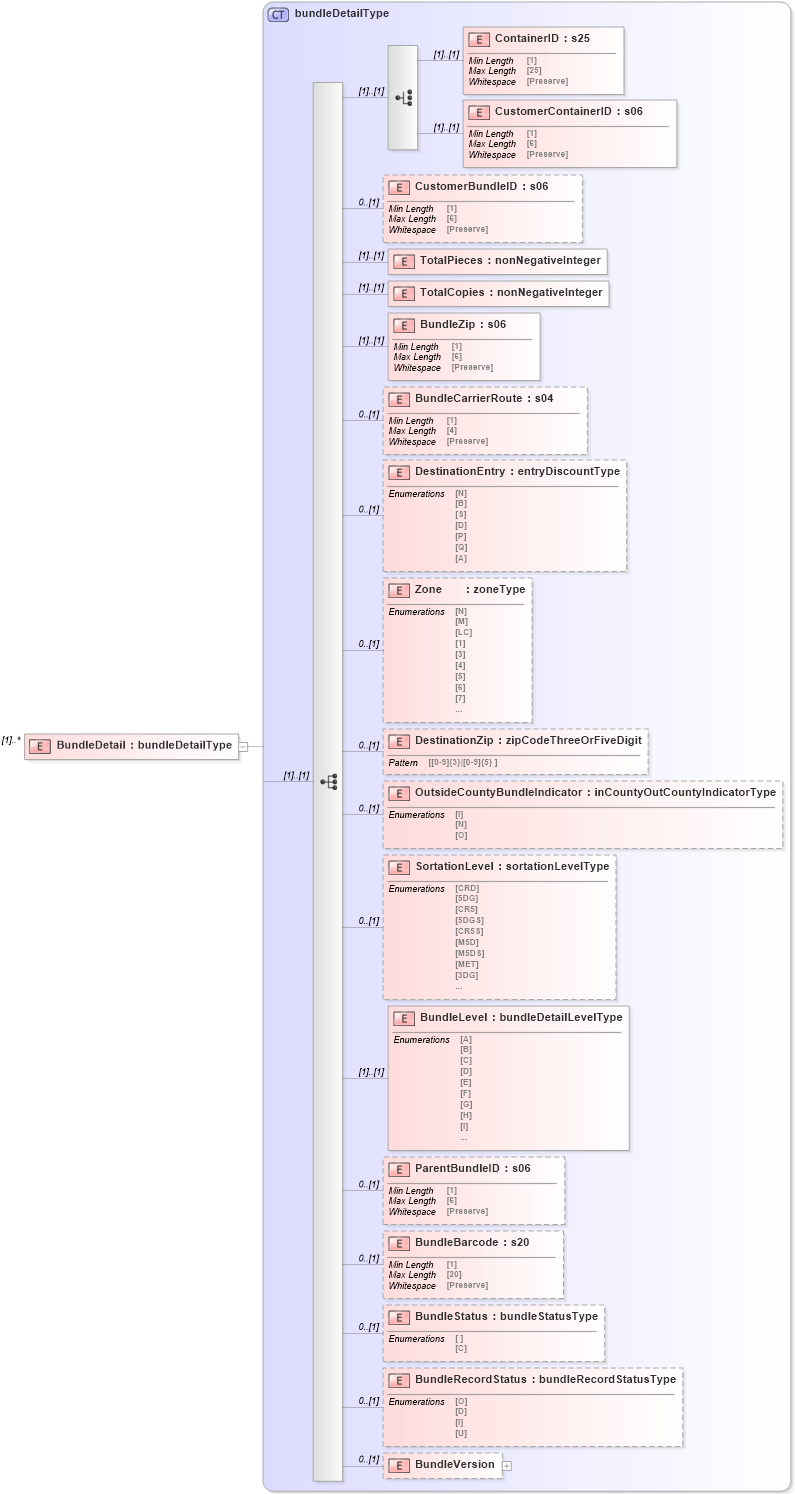

Collapse XSD Schema Diagram:
Drilldown into BundleVersion in schema mailxml_120308_xsd Drilldown into BundleRecordStatus in schema mailxml_120308_xsd Drilldown into BundleStatus in schema mailxml_120308_xsd Drilldown into BundleBarcode in schema mailxml_120308_xsd Drilldown into ParentBundleID in schema mailxml_120308_xsd Drilldown into BundleLevel in schema mailxml_120308_xsd Drilldown into SortationLevel in schema mailxml_120308_xsd Drilldown into OutsideCountyBundleIndicator in schema mailxml_120308_xsd Drilldown into DestinationZip in schema mailxml_120308_xsd Drilldown into Zone in schema mailxml_120308_xsd Drilldown into DestinationEntry in schema mailxml_120308_xsd Drilldown into BundleCarrierRoute in schema mailxml_120308_xsd Drilldown into BundleZip in schema mailxml_120308_xsd Drilldown into TotalCopies in schema mailxml_120308_xsd Drilldown into TotalPieces in schema mailxml_120308_xsd Drilldown into CustomerBundleID in schema mailxml_120308_xsd Drilldown into CustomerContainerID in schema mailxml_120308_xsd Drilldown into ContainerID in schema mailxml_120308_xsd Drilldown into bundleDetailType in schema mailxml_120308_xsdXSD Diagram of BundleDetail in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="BundleDetail" type="mailxml:bundleDetailType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContainerID mailxml:ContainerID (1) (1)
CustomerContainerID mailxml:CustomerContainerID (1) (1)
CustomerBundleID mailxml:CustomerBundleID 0 (1)
TotalPieces mailxml:TotalPieces (1) (1)
TotalCopies mailxml:TotalCopies (1) (1)
BundleZip mailxml:BundleZip (1) (1)
BundleCarrierRoute mailxml:BundleCarrierRoute 0 (1)
DestinationEntry mailxml:DestinationEntry 0 (1)
Zone mailxml:Zone 0 (1)
DestinationZip mailxml:DestinationZip 0 (1)
OutsideCountyBundleIndicator mailxml:OutsideCountyBundleIndicator 0 (1)
SortationLevel mailxml:SortationLevel 0 (1)
BundleLevel mailxml:BundleLevel (1) (1)
ParentBundleID mailxml:ParentBundleID 0 (1)
BundleBarcode mailxml:BundleBarcode 0 (1)
BundleStatus mailxml:BundleStatus 0 (1)
BundleRecordStatus mailxml:BundleRecordStatus 0 (1)
BundleVersion mailxml:BundleVersion 0 (1)
Collapse Derivation Tree:
