Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: ConsigneeFacility
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:consigneeFacilityType
Containing Schema: mailxml_120308.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

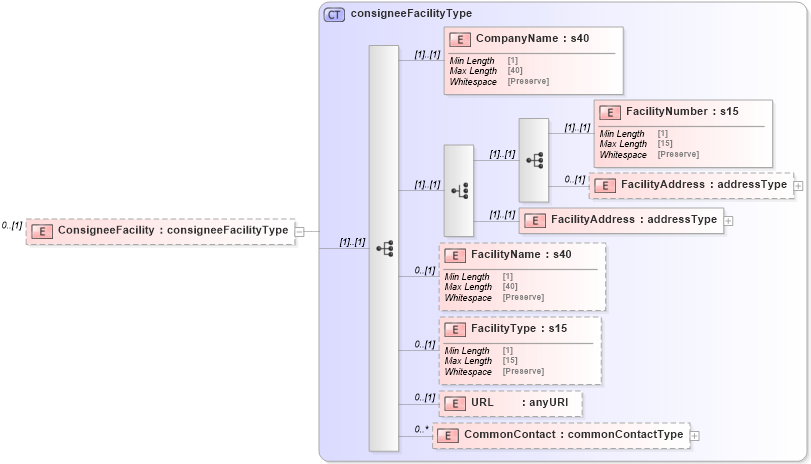

Drilldown into CommonContact in schema mailxml_120308_xsd Drilldown into URL in schema mailxml_120308_xsd Drilldown into FacilityType in schema mailxml_120308_xsd Drilldown into FacilityName in schema mailxml_120308_xsd Drilldown into FacilityAddress in schema mailxml_120308_xsd Drilldown into FacilityAddress in schema mailxml_120308_xsd Drilldown into FacilityNumber in schema mailxml_120308_xsd Drilldown into CompanyName in schema mailxml_120308_xsd Drilldown into consigneeFacilityType in schema mailxml_120308_xsdXSD Diagram of ConsigneeFacility in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="ConsigneeFacility" type="mailxml:consigneeFacilityType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompanyName mailxml:CompanyName (1) (1)
FacilityNumber mailxml:FacilityNumber (1) (1)
FacilityAddress mailxml:FacilityAddress 0 (1)
FacilityAddress mailxml:FacilityAddress (1) (1)
FacilityName mailxml:FacilityName 0 (1)
FacilityType mailxml:FacilityType 0 (1)
URL mailxml:URL 0 (1)
CommonContact mailxml:CommonContact 0 unbounded
Collapse Derivation Tree:
