Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: consigneeFacilityType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

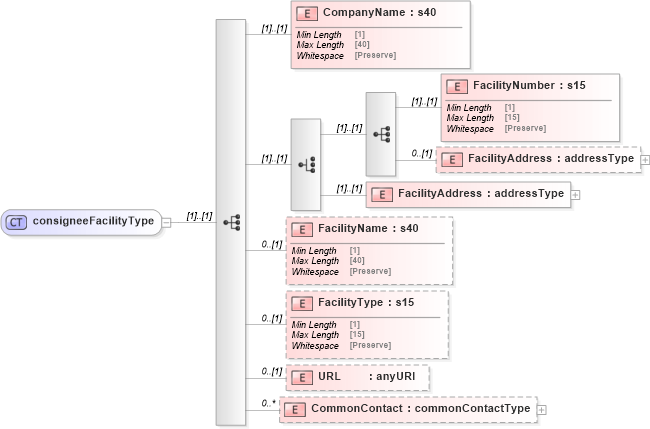

Collapse XSD Schema Diagram:
Drilldown into CommonContact in schema mailxml_120308_xsd Drilldown into URL in schema mailxml_120308_xsd Drilldown into FacilityType in schema mailxml_120308_xsd Drilldown into FacilityName in schema mailxml_120308_xsd Drilldown into FacilityAddress in schema mailxml_120308_xsd Drilldown into FacilityAddress in schema mailxml_120308_xsd Drilldown into FacilityNumber in schema mailxml_120308_xsd Drilldown into CompanyName in schema mailxml_120308_xsdXSD Diagram of consigneeFacilityType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="consigneeFacilityType">
    <xs:sequence>
        <xs:element name="CompanyName" type="mailxml_base:s40" />
        <xs:choice>
            <xs:sequence>
                <xs:element name="FacilityNumber" type="mailxml_base:s15" />
                <xs:element name="FacilityAddress" type="mailxml:addressType" minOccurs="0" />
            </xs:sequence>
            <xs:element name="FacilityAddress" type="mailxml:addressType" />
        </xs:choice>
        <xs:element name="FacilityName" type="mailxml_base:s40" minOccurs="0" />
        <xs:element name="FacilityType" type="mailxml_base:s15" minOccurs="0" />
        <xs:element name="URL" type="xs:anyURI" minOccurs="0" />
        <xs:element name="CommonContact" type="mailxml:commonContactType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompanyName mailxml:CompanyName (1) (1)
FacilityNumber mailxml:FacilityNumber (1) (1)
FacilityAddress mailxml:FacilityAddress 0 (1)
FacilityAddress mailxml:FacilityAddress (1) (1)
FacilityName mailxml:FacilityName 0 (1)
FacilityType mailxml:FacilityType 0 (1)
URL mailxml:URL 0 (1)
CommonContact mailxml:CommonContact 0 unbounded
Collapse Derivation Tree:
Collapse References:
mailxml:ActualConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacilitymailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:ConsigneeFacility, mailxml:PickupLocation, mailxml:PickupLocation, mailxml:ScheduledConsigneeFacility,
