Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: contentDetailInfoType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

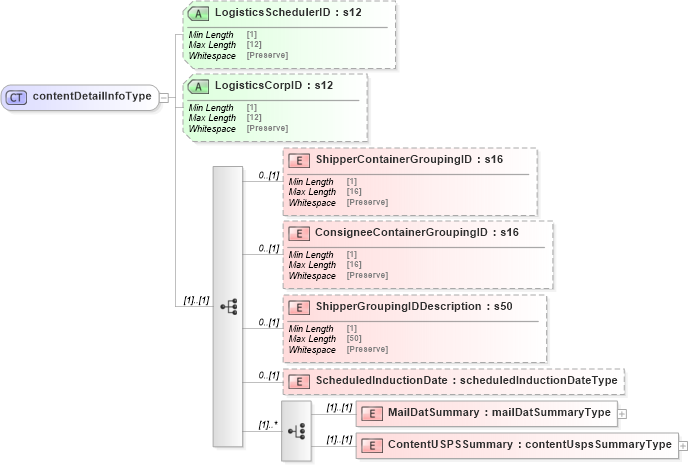

Collapse XSD Schema Diagram:
Drilldown into ContentUSPSSummary in schema mailxml_120308_xsd Drilldown into MailDatSummary in schema mailxml_120308_xsd Drilldown into ScheduledInductionDate in schema mailxml_120308_xsd Drilldown into ShipperGroupingIDDescription in schema mailxml_120308_xsd Drilldown into ConsigneeContainerGroupingID in schema mailxml_120308_xsd Drilldown into ShipperContainerGroupingID in schema mailxml_120308_xsd Drilldown into LogisticsCorpID in schema mailxml_120308_xsd Drilldown into LogisticsSchedulerID in schema mailxml_120308_xsdXSD Diagram of contentDetailInfoType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="contentDetailInfoType">
    <xs:sequence>
        <xs:element name="ShipperContainerGroupingID" type="mailxml_base:s16" minOccurs="0" />
        <xs:element name="ConsigneeContainerGroupingID" type="mailxml_base:s16" minOccurs="0" />
        <xs:element name="ShipperGroupingIDDescription" type="mailxml_base:s50" minOccurs="0" />
        <xs:element name="ScheduledInductionDate" type="mailxml_base:scheduledInductionDateType" minOccurs="0" />
        <xs:choice maxOccurs="unbounded">
            <xs:element name="MailDatSummary" type="mailxml:mailDatSummaryType" />
            <xs:element name="ContentUSPSSummary" type="mailxml:contentUspsSummaryType" />
        </xs:choice>
    </xs:sequence>
    <xs:attribute name="LogisticsSchedulerID" type="mailxml_base:s12" />
    <xs:attribute name="LogisticsCorpID" type="mailxml_base:s12" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShipperContainerGroupingID mailxml:ShipperContainerGroupingID 0 (1)
ConsigneeContainerGroupingID mailxml:ConsigneeContainerGroupingID 0 (1)
ShipperGroupingIDDescription mailxml:ShipperGroupingIDDescription 0 (1)
ScheduledInductionDate mailxml:ScheduledInductionDate 0 (1)
MailDatSummary mailxml:MailDatSummary (1) (1)
ContentUSPSSummary mailxml:ContentUSPSSummary (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
LogisticsSchedulerID mailxml:LogisticsSchedulerID (Optional)
LogisticsCorpID mailxml:LogisticsCorpID (Optional)
Collapse Derivation Tree:
Collapse References:
mailxml:ContentDetailInfo, mailxml:ContentDetailInfo
