Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: cRIDsRequestedType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

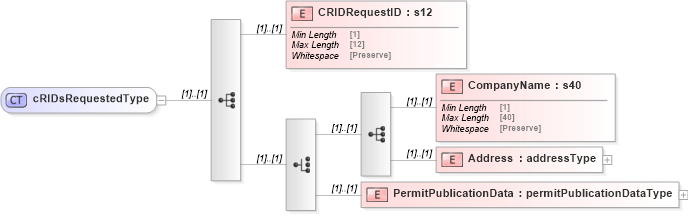

Collapse XSD Schema Diagram:
Drilldown into PermitPublicationData in schema mailxml_120308_xsd Drilldown into Address in schema mailxml_120308_xsd Drilldown into CompanyName in schema mailxml_120308_xsd Drilldown into CRIDRequestID in schema mailxml_120308_xsdXSD Diagram of cRIDsRequestedType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="cRIDsRequestedType">
    <xs:sequence>
        <xs:element name="CRIDRequestID" type="mailxml_base:s12" />
        <xs:choice>
            <xs:sequence>
                <xs:element name="CompanyName" type="mailxml_base:s40" />
                <xs:element name="Address" type="mailxml:addressType" />
            </xs:sequence>
            <xs:element name="PermitPublicationData" type="mailxml:permitPublicationDataType" />
        </xs:choice>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CRIDRequestID mailxml:CRIDRequestID (1) (1)
CompanyName mailxml:CompanyName (1) (1)
Address mailxml:Address (1) (1)
PermitPublicationData mailxml:PermitPublicationData (1) (1)
Collapse Derivation Tree:
Collapse References:
mailxml:CRIDsRequested
