Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: MailPieceID
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:mailPieceIDType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

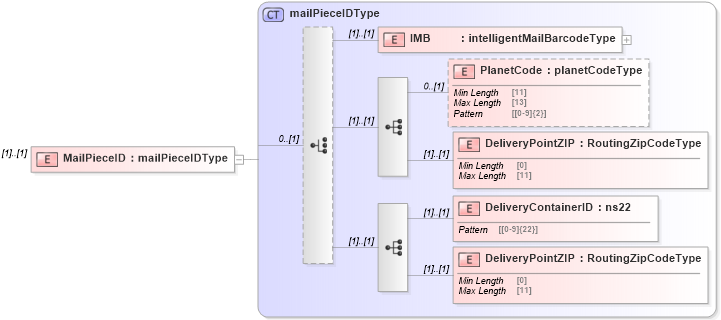

Collapse XSD Schema Diagram:
Drilldown into DeliveryPointZIP in schema mailxml_120308_xsd Drilldown into DeliveryContainerID in schema mailxml_120308_xsd Drilldown into DeliveryPointZIP in schema mailxml_120308_xsd Drilldown into PlanetCode in schema mailxml_120308_xsd Drilldown into IMB in schema mailxml_120308_xsd Drilldown into mailPieceIDType in schema mailxml_120308_xsdXSD Diagram of MailPieceID in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="MailPieceID" type="mailxml:mailPieceIDType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IMB mailxml:IMB (1) (1)
PlanetCode mailxml:PlanetCode 0 (1)
DeliveryPointZIP mailxml:DeliveryPointZIP (1) (1)
DeliveryContainerID mailxml:DeliveryContainerID (1) (1)
DeliveryPointZIP mailxml:DeliveryPointZIP (1) (1)
Collapse Derivation Tree:
