Definition Type: Element
Name: RecurringApptBlock
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:recurringApptBlockType
Containing Schema: mailxml_120308.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract

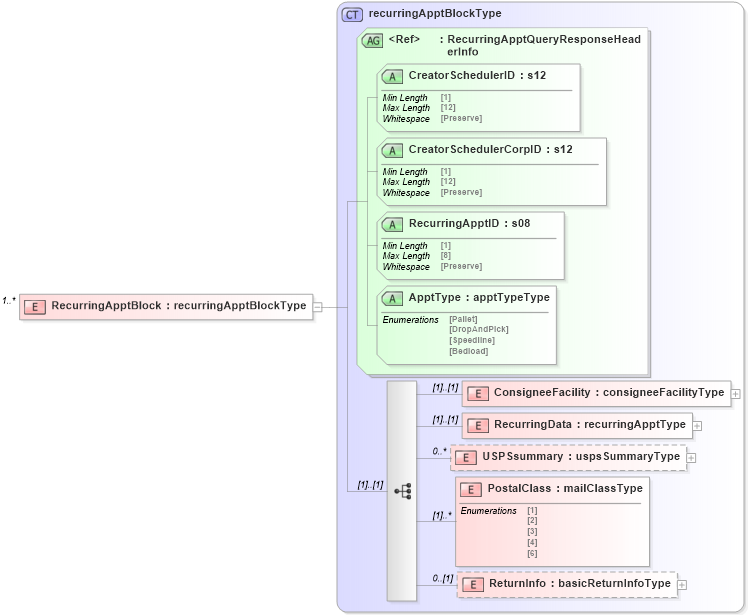

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into PostalClass in schema mailxml_120308_xsd Drilldown into USPSsummary in schema mailxml_120308_xsd Drilldown into RecurringData in schema mailxml_120308_xsd Drilldown into ConsigneeFacility in schema mailxml_120308_xsd Drilldown into ApptType in schema mailxml_120308_xsd Drilldown into RecurringApptID in schema mailxml_120308_xsd Drilldown into CreatorSchedulerCorpID in schema mailxml_120308_xsd Drilldown into CreatorSchedulerID in schema mailxml_120308_xsd Drilldown into RecurringApptQueryResponseHeaderInfo in schema mailxml_120308_xsd Drilldown into recurringApptBlockType in schema mailxml_120308_xsdXSD Diagram of RecurringApptBlock in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="RecurringApptBlock" type="mailxml:recurringApptBlockType" minOccurs="1" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConsigneeFacility mailxml:ConsigneeFacility (1) (1)
RecurringData mailxml:RecurringData (1) (1)
USPSsummary mailxml:USPSsummary 0 unbounded
PostalClass mailxml:PostalClass (1) unbounded
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CreatorSchedulerID mailxml:CreatorSchedulerID Required
CreatorSchedulerCorpID mailxml:CreatorSchedulerCorpID Required
RecurringApptID mailxml:RecurringApptID Required
ApptType mailxml:ApptType Required
Collapse Derivation Tree:
