Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: USPSContainerInfo
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:uspsContainerInfoType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

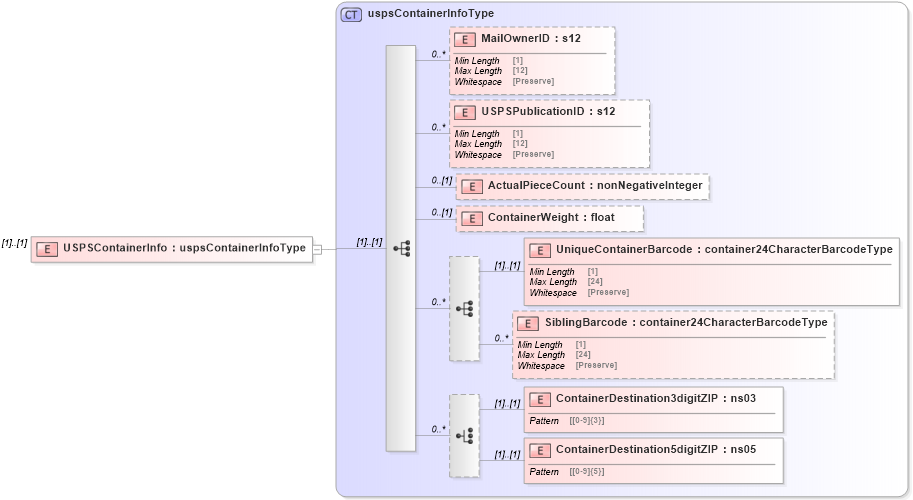

Collapse XSD Schema Diagram:
Drilldown into ContainerDestination5digitZIP in schema mailxml_120308_xsd Drilldown into ContainerDestination3digitZIP in schema mailxml_120308_xsd Drilldown into SiblingBarcode in schema mailxml_120308_xsd Drilldown into UniqueContainerBarcode in schema mailxml_120308_xsd Drilldown into ContainerWeight in schema mailxml_120308_xsd Drilldown into ActualPieceCount in schema mailxml_120308_xsd Drilldown into USPSPublicationID in schema mailxml_120308_xsd Drilldown into MailOwnerID in schema mailxml_120308_xsd Drilldown into uspsContainerInfoType in schema mailxml_120308_xsdXSD Diagram of USPSContainerInfo in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="USPSContainerInfo" type="mailxml:uspsContainerInfoType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailOwnerID mailxml:MailOwnerID 0 unbounded
USPSPublicationID mailxml:USPSPublicationID 0 unbounded
ActualPieceCount mailxml:ActualPieceCount 0 (1)
ContainerWeight mailxml:ContainerWeight 0 (1)
UniqueContainerBarcode mailxml:UniqueContainerBarcode (1) (1)
SiblingBarcode mailxml:SiblingBarcode 0 unbounded
ContainerDestination3digitZIP mailxml:ContainerDestination3digitZIP (1) (1)
ContainerDestination5digitZIP mailxml:ContainerDestination5digitZIP (1) (1)
Collapse Derivation Tree:
