Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: uspsContainerInfoType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

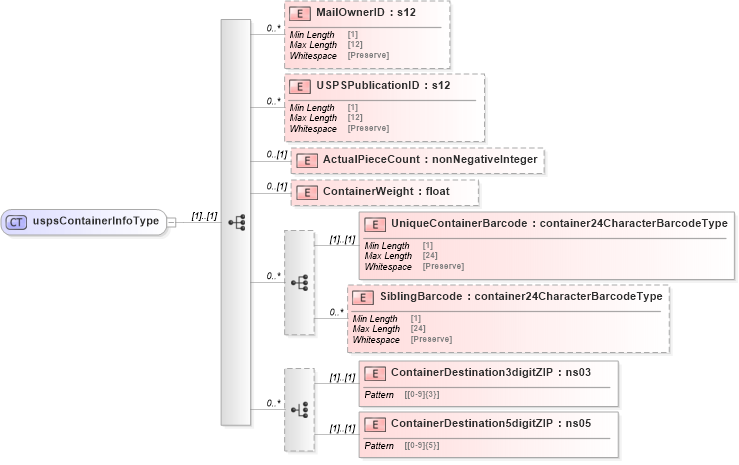

Collapse XSD Schema Diagram:
Drilldown into ContainerDestination5digitZIP in schema mailxml_120308_xsd Drilldown into ContainerDestination3digitZIP in schema mailxml_120308_xsd Drilldown into SiblingBarcode in schema mailxml_120308_xsd Drilldown into UniqueContainerBarcode in schema mailxml_120308_xsd Drilldown into ContainerWeight in schema mailxml_120308_xsd Drilldown into ActualPieceCount in schema mailxml_120308_xsd Drilldown into USPSPublicationID in schema mailxml_120308_xsd Drilldown into MailOwnerID in schema mailxml_120308_xsdXSD Diagram of uspsContainerInfoType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="uspsContainerInfoType">
    <xs:sequence>
        <xs:element name="MailOwnerID" type="mailxml_base:s12" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="USPSPublicationID" type="mailxml_base:s12" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="ActualPieceCount" type="xs:nonNegativeInteger" minOccurs="0" />
        <xs:element name="ContainerWeight" type="xs:float" minOccurs="0" />
        <xs:sequence minOccurs="0" maxOccurs="unbounded">
            <xs:element name="UniqueContainerBarcode" type="mailxml_base:container24CharacterBarcodeType" />
            <xs:element name="SiblingBarcode" type="mailxml_base:container24CharacterBarcodeType" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element name="ContainerDestination3digitZIP" type="mailxml_base:ns03" />
            <xs:element name="ContainerDestination5digitZIP" type="mailxml_base:ns05" />
        </xs:choice>
        <!--<xs:element name="NestedContainers" type="mailxml:uspsContainerInfoType" minOccurs="0" maxOccurs="unbounded"/> -->
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailOwnerID mailxml:MailOwnerID 0 unbounded
USPSPublicationID mailxml:USPSPublicationID 0 unbounded
ActualPieceCount mailxml:ActualPieceCount 0 (1)
ContainerWeight mailxml:ContainerWeight 0 (1)
UniqueContainerBarcode mailxml:UniqueContainerBarcode (1) (1)
SiblingBarcode mailxml:SiblingBarcode 0 unbounded
ContainerDestination3digitZIP mailxml:ContainerDestination3digitZIP (1) (1)
ContainerDestination5digitZIP mailxml:ContainerDestination5digitZIP (1) (1)
Collapse Derivation Tree:
Collapse References:
mailxml:USPSContainerInfo, mailxml:USPSContainerInfo, mailxml:USPSContainerInfo
