Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: OrderDocumentReference
Namespace: http://www.openapplications.org/oagis
Type: oa:DocumentReference
Containing Schema: Components.xsd
Abstract

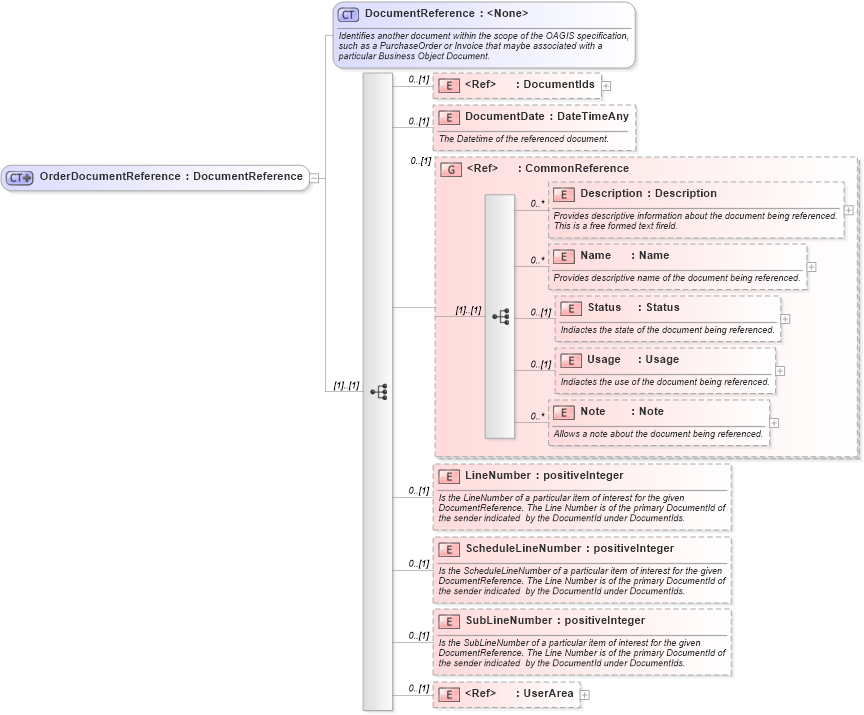

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into SubLineNumber in schema components_xsd Drilldown into ScheduleLineNumber in schema components_xsd Drilldown into LineNumber in schema components_xsd Drilldown into Note in schema components_xsd Drilldown into Usage in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Name in schema components_xsd Drilldown into Description in schema components_xsd Drilldown into CommonReference in schema components_xsd Drilldown into DocumentDate in schema components_xsd Drilldown into DocumentIds in schema fields_xsd Drilldown into DocumentReference in schema components_xsdXSD Diagram of OrderDocumentReference in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="OrderDocumentReference">
    <xs:complexContent>
        <xs:extension base="DocumentReference">
            <xs:sequence>
                <xs:element ref="DocumentIds" minOccurs="0" />
                <xs:element name="DocumentDate" type="DateTimeAny" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">The Datetime of the referenced document.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:group ref="CommonReference" minOccurs="0" />
                <xs:element name="LineNumber" type="xs:positiveInteger" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Is the LineNumber of a particular item of interest for the given DocumentReference. The Line Number is of the primary DocumentId of the sender indicated  by the DocumentId under DocumentIds.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="ScheduleLineNumber" type="xs:positiveInteger" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Is the ScheduleLineNumber of a particular item of interest for the given DocumentReference. The Line Number is of the primary DocumentId of the sender indicated  by the DocumentId under DocumentIds.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="SubLineNumber" type="xs:positiveInteger" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Is the SubLineNumber of a particular item of interest for the given DocumentReference. The Line Number is of the primary DocumentId of the sender indicated  by the DocumentId under DocumentIds.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element ref="UserArea" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentIds oa:DocumentIds 0 (1)
DocumentDate oa:DocumentDate 0 (1)
Description oa:Description 0 unbounded
Name oa:Name 0 unbounded
Status oa:Status 0 (1)
Usage oa:Usage 0 (1)
Note oa:Note 0 unbounded
LineNumber oa:LineNumber 0 (1)
ScheduleLineNumber oa:ScheduleLineNumber 0 (1)
SubLineNumber oa:SubLineNumber 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:CommonReference 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:ContractDocumentReference, oa:InvoiceDocumentReference, oa:PurchaseOrderDocumentReference, oa:QuoteDocumentReference, oa:ReceiptDocumentReference, oa:RequisitionDocumentReference, oa:RFQDocumentReference, oa:SalesOrderDocumentReference, oa:VoucherDocumentReference
