Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: OrderSchedule
Namespace: http://www.openapplications.org/oagis
Type: oa:OrderLineBase
Containing Schema: Order.xsd
Abstract

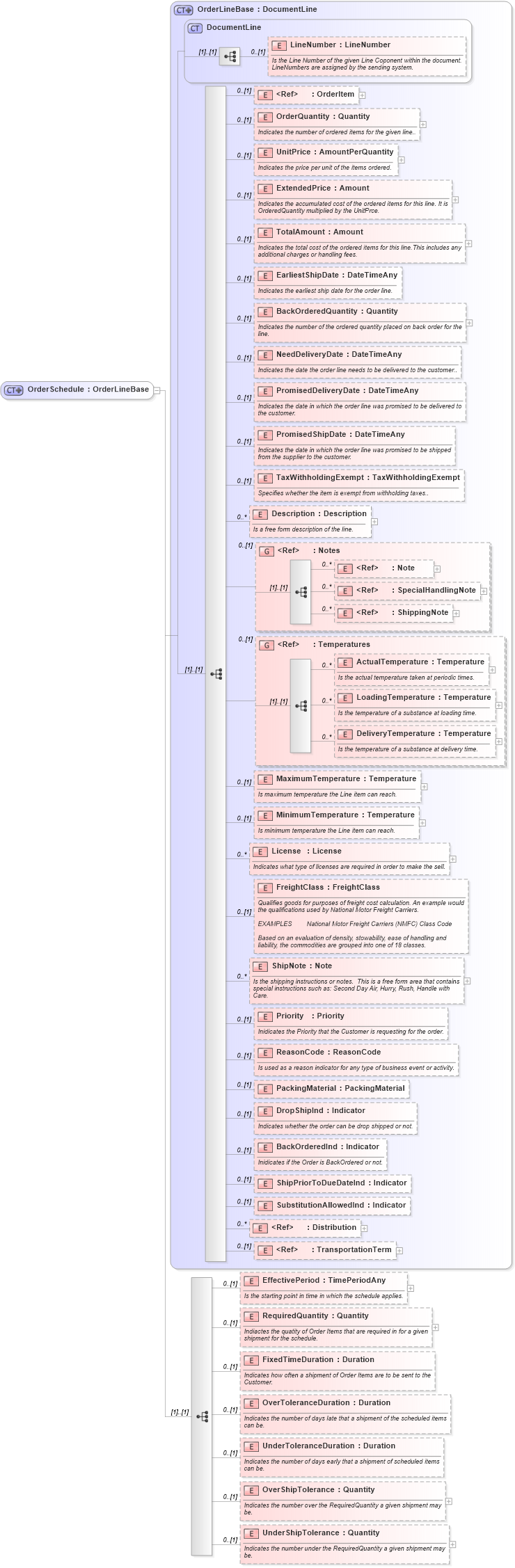

Collapse XSD Schema Diagram:
Drilldown into UnderShipTolerance in schema order_xsd Drilldown into OverShipTolerance in schema order_xsd Drilldown into UnderToleranceDuration in schema order_xsd Drilldown into OverToleranceDuration in schema order_xsd Drilldown into FixedTimeDuration in schema order_xsd Drilldown into RequiredQuantity in schema order_xsd Drilldown into EffectivePeriod in schema order_xsd Drilldown into TransportationTerm in schema components_xsd Drilldown into Distribution in schema components_xsd Drilldown into SubstitutionAllowedInd in schema order_xsd Drilldown into ShipPriorToDueDateInd in schema order_xsd Drilldown into BackOrderedInd in schema order_xsd Drilldown into DropShipInd in schema order_xsd Drilldown into PackingMaterial in schema order_xsd Drilldown into ReasonCode in schema order_xsd Drilldown into Priority in schema order_xsd Drilldown into ShipNote in schema order_xsd Drilldown into FreightClass in schema order_xsd Drilldown into License in schema order_xsd Drilldown into MinimumTemperature in schema order_xsd Drilldown into MaximumTemperature in schema order_xsd Drilldown into DeliveryTemperature in schema fields_xsd Drilldown into LoadingTemperature in schema fields_xsd Drilldown into ActualTemperature in schema fields_xsd Drilldown into Temperatures in schema fields_xsd Drilldown into ShippingNote in schema fields_xsd Drilldown into SpecialHandlingNote in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Notes in schema fields_xsd Drilldown into Description in schema order_xsd Drilldown into TaxWithholdingExempt in schema order_xsd Drilldown into PromisedShipDate in schema order_xsd Drilldown into PromisedDeliveryDate in schema order_xsd Drilldown into NeedDeliveryDate in schema order_xsd Drilldown into BackOrderedQuantity in schema order_xsd Drilldown into EarliestShipDate in schema order_xsd Drilldown into TotalAmount in schema order_xsd Drilldown into ExtendedPrice in schema order_xsd Drilldown into UnitPrice in schema order_xsd Drilldown into OrderQuantity in schema order_xsd Drilldown into OrderItem in schema components_xsd Drilldown into LineNumber in schema document_xsd Drilldown into DocumentLine in schema document_xsd Drilldown into OrderLineBase in schema order_xsdXSD Diagram of OrderSchedule in schema order_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="OrderSchedule">
    <xs:complexContent>
        <xs:extension base="OrderLineBase">
            <xs:sequence>
                <xs:element name="EffectivePeriod" type="TimePeriodAny" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Is the starting point in time in which the schedule applies.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="RequiredQuantity" type="Quantity" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Indiactes the quatity of Order Items that are required in for a given shipment for the schedule.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="FixedTimeDuration" type="Duration" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Indicates how often a shipment of Order Items are to be sent to the Customer.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="OverToleranceDuration" type="Duration" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Indicates the number of days late that a shipment of the scheduled items can be.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="UnderToleranceDuration" type="Duration" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Indicates the number of days early that a shipment of scheduled items can be.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="OverShipTolerance" type="Quantity" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Indicates the number over the RequiredQuantity a given shipment may be.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="UnderShipTolerance" type="Quantity" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation source="http://www.openapplications.org/oagis">Indicates the number under the RequiredQuantity a given shipment may be.</xs:documentation>
                    </xs:annotation>
                </xs:element>
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber oa:LineNumber 0 (1)
OrderItem oa:OrderItem 0 (1)
OrderQuantity oa:OrderQuantity 0 (1)
UnitPrice oa:UnitPrice 0 (1)
ExtendedPrice oa:ExtendedPrice 0 (1)
TotalAmount oa:TotalAmount 0 (1)
EarliestShipDate oa:EarliestShipDate 0 (1)
BackOrderedQuantity oa:BackOrderedQuantity 0 (1)
NeedDeliveryDate oa:NeedDeliveryDate 0 (1)
PromisedDeliveryDate oa:PromisedDeliveryDate 0 (1)
PromisedShipDate oa:PromisedShipDate 0 (1)
TaxWithholdingExempt oa:TaxWithholdingExempt 0 (1)
Description oa:Description 0 unbounded
Note oa:Note 0 unbounded
SpecialHandlingNote oa:SpecialHandlingNote 0 unbounded
ShippingNote oa:ShippingNote 0 unbounded
ActualTemperature oa:ActualTemperature 0 unbounded
LoadingTemperature oa:LoadingTemperature 0 unbounded
DeliveryTemperature oa:DeliveryTemperature 0 unbounded
MaximumTemperature oa:MaximumTemperature 0 (1)
MinimumTemperature oa:MinimumTemperature 0 (1)
License oa:License 0 unbounded
FreightClass oa:FreightClass 0 (1)
ShipNote oa:ShipNote 0 unbounded
Priority oa:Priority 0 (1)
ReasonCode oa:ReasonCode 0 (1)
PackingMaterial oa:PackingMaterial 0 (1)
DropShipInd oa:DropShipInd 0 (1)
BackOrderedInd oa:BackOrderedInd 0 (1)
ShipPriorToDueDateInd oa:ShipPriorToDueDateInd 0 (1)
SubstitutionAllowedInd oa:SubstitutionAllowedInd 0 (1)
Distribution oa:Distribution 0 unbounded
TransportationTerm oa:TransportationTerm 0 (1)
EffectivePeriod oa:EffectivePeriod 0 (1)
RequiredQuantity oa:RequiredQuantity 0 (1)
FixedTimeDuration oa:FixedTimeDuration 0 (1)
OverToleranceDuration oa:OverToleranceDuration 0 (1)
UnderToleranceDuration oa:UnderToleranceDuration 0 (1)
OverShipTolerance oa:OverShipTolerance 0 (1)
UnderShipTolerance oa:UnderShipTolerance 0 (1)
<xs:group> oa:Notes 0 (1)
<xs:group> oa:Temperatures 0 (1)
Collapse Derivation Tree:
